Attribute
Description
Manufacturer Part Number

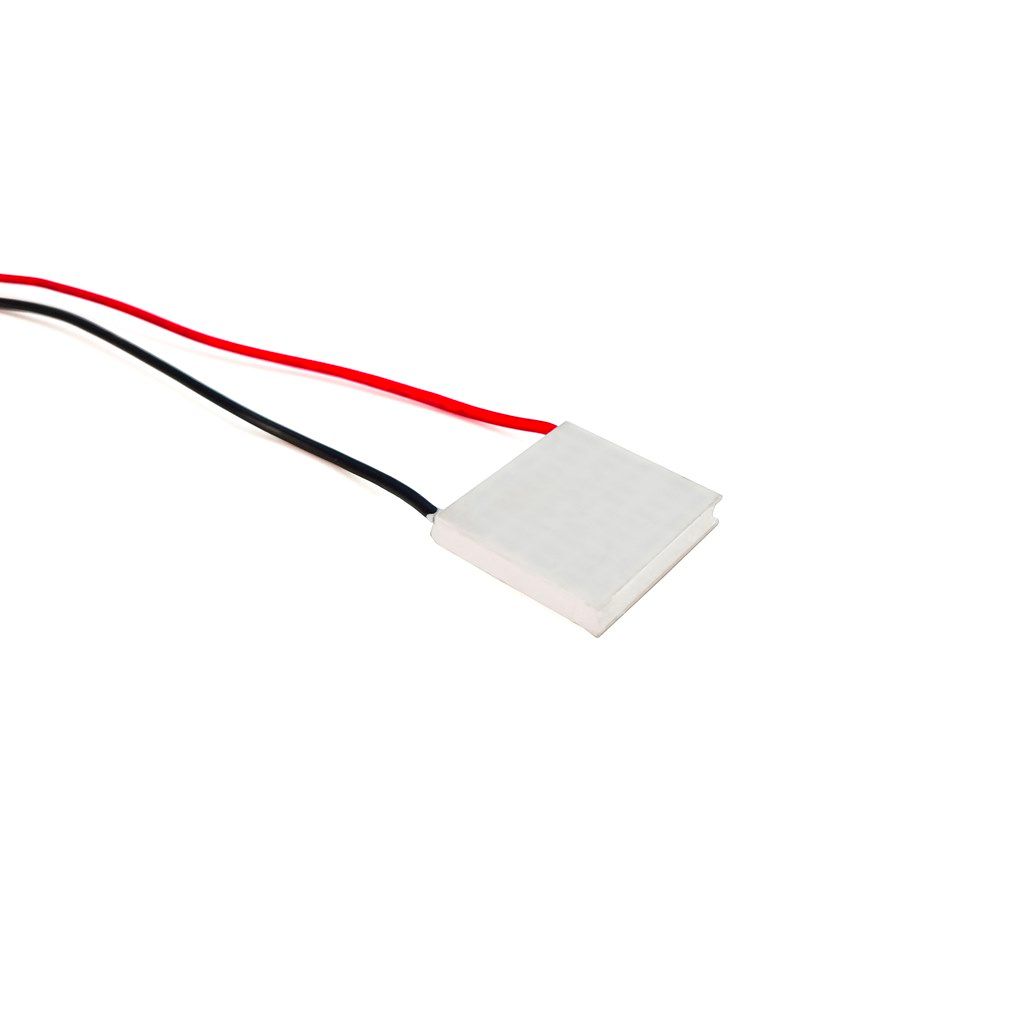

ATE1-49-3AS
Manufacturer
Description
DTMAX 62C 5.9V 3A 12.6W 20*20*3.
Note :
GST will not be applied to orders shipping outside of India
Stock: 100
Distributor: 117
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 1,730.18 | ₹ 1,73,018.00 |
| 50 | ₹ 1,777.30 | ₹ 88,865.00 |
| 25 | ₹ 1,825.71 | ₹ 45,642.75 |
| 10 | ₹ 1,891.73 | ₹ 18,917.30 |
| 5 | ₹ 1,943.24 | ₹ 9,716.20 |
| 1 | ₹ 2,068.32 | ₹ 2,068.32 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ATE1 | |
| Availability Status | Active | |
| Device Type Classification | TEC (Thermoelectric Cooler) | |
| Package Size Specs | - | |
| Max Q at Holding Temp | 12.6W @ 63°C | |
| Max Temperature Delta at Holding | 62°C @ 63°C | |
| Vertical Dimension | - | |
| Amplifier Stage Count | 1 | |
| Maximum Amp Rating | 3 A | |
| Peak Voltage Tolerance | 5.9 V | |
| Ohm Resistance Value | - | |
| Ambient Temp Range | 85°C | |
| Key Product Highlights | Lead Wires, Sealed |
Description
Specifies maximum current capacity of 3 A. Indicates delta Tmax at Th quantified as 62°C @ 63°C. Furnished with features classified as Lead Wires, Sealed. Total stages 1 for multi-stage circuits or systems. Operating temperature 85°C for thermal stability. Product condition Active for availability and lifecycle. Peak Q at limit 12.6W @ 63°C for component specifications. Product or component classification series ATE1. Category TEC (Thermoelectric Cooler) for classification or specification. Highest voltage 5.9 V according to device specifications.
