1SS355VMTE-17
Data Sheet
Attribute
Description
Manufacturer Part Number
1SS355VMTE-17
Manufacturer
Description
Other diodes
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Semiconductor Diode Category | Standard | |
| Reverse DC Voltage(Vr) | 80V | |
| Average DC Output Current | 100mA | |
| Forward Voltage (Vf) | 1.2V @ 100mA | |
| Operational Speed Rating | Small Signal =< 200mA (Io), Any Speed | |
| trr Recovery | 4ns | |
| Reverse Leakage Current @ Vr | 100nA @ 80V | |
| Capacitance at Voltage and Frequency | 3pF @ 0.5V, 1MHz | |
| Heat Dissipation Resistance | - | |
| Junction Temp Range | 150°C (Max) | |
| Attachment Mounting Style | Surface Mount | |

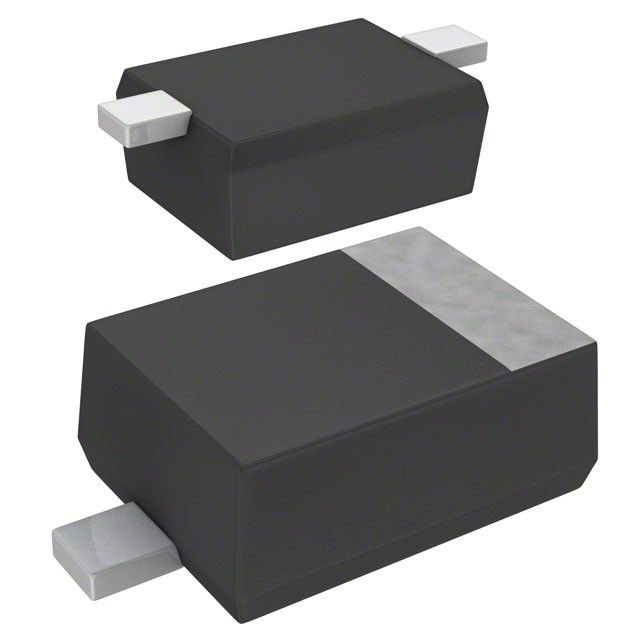

| Component Housing Style | SC-90, SOD-323F |
Description
Measures resistance at forward current 1.2V @ 100mA for LED or diode evaluation. Accommodates capacitance at Vr and frequency specified as 3pF @ 0.5V, 1MHz. Delivers average rectified current (Io) recorded at 100mA. Includes diode type indicated as Standard. Mounting style Surface Mount for structural integrity. Junction operating temperature 150°C (Max) for component protection. Enclosure/case SC-90, SOD-323F providing mechanical and thermal shielding. Reverse recovery duration 4ns for switching diodes. Velocity Small Signal =< 200mA (Io), Any Speed for mechanical or data efficiency. Peak Vce(on) at Vge Standard for transistor parameters.
