TYN20B-600T,118
Data Sheet
Attribute
Description
Manufacturer Part Number
TYN20B-600T,118
Manufacturer
Description
Silicon Controlled Rectifiers,
600V,
20A
Manufacturer Lead Time
52 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Off-State Voltage Rating | 600V | |
| Max Gate Trigger Amps | 32mA | |
| Max Average On-State Current | 12.7A | |
| Max RMS On-State Current | 20A | |
| Non-Repetitive Surge 50/60Hz | 210A, 231A | |
| Maximum Holding Current | 40mA | |
| Attachment Mounting Style | Surface Mount | |

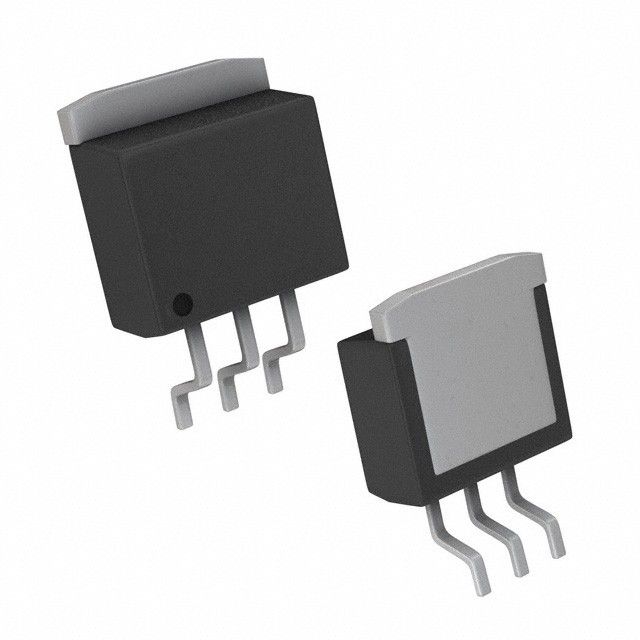

| Component Housing Style | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Description
Measures resistance at forward current 600V for LED or diode evaluation. Provides a maximum gate trigger current (Igt) rated at 32mA. Presents maximum hold current recorded at 40mA. Can handle surge current Itsm rated at 210A, 231A for 50/60Hz. Offers maximum average on-state current It(AV) of 12.7A. Accommodates RMS on-state current rated at 20A. Mounting style Surface Mount for structural integrity. Enclosure/case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB providing mechanical and thermal shielding. Voltage 600V in off-state for semiconductors or switches.
