NE68730-T1
Data Sheet
Attribute
Description
Manufacturer Part Number
NE68730-T1
Manufacturer
Description
TRANS NPN 2GHZ SOT-323
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Transistor Class | NPN | |
| Max Collector-Emitter Breakdown | 3V | |
| Transition Freq | 11GHz | |
| Noise Figure @ f | 1.3dB ~ 2dB @ 2GHz | |
| Amplification Factor | - | |
| Maximum Power Handling | 90mW | |
| DC Current Gain (hFE) @ Ic, Vce | 70 @ 20mA, 2V | |
| Maximum Collector Amps | 30mA | |
| Attachment Mounting Style | Surface Mount | |

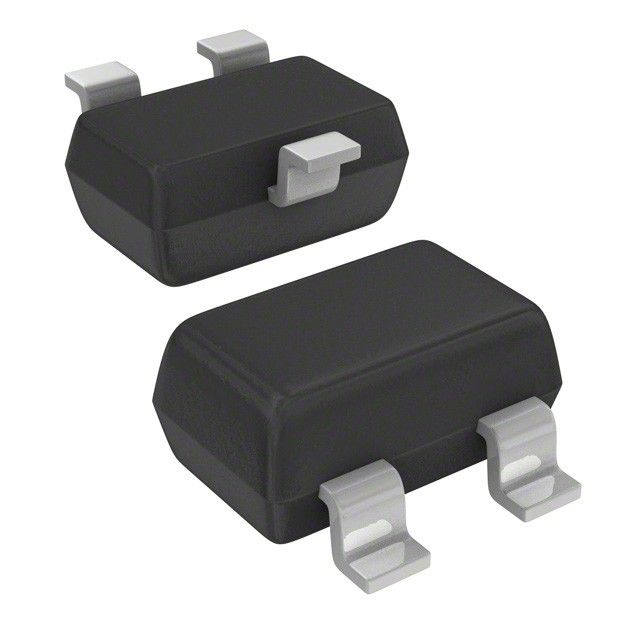

| Component Housing Style | SC-70, SOT-323 |
Description
Measures resistance at forward current 11GHz for LED or diode evaluation. Provides a maximum collector current (Ic) of 30mA. Features a DC current gain hFE at Ic evaluated at 70 @ 20mA, 2V. Offers 11GHz transition frequency for seamless signal modulation. Mounting style Surface Mount for structural integrity. Enclosure/case SC-70, SOT-323 providing mechanical and thermal shielding. Peak power 90mW for device protection. Type of transistor NPN for circuit architecture. Highest collector-emitter breakdown voltage 3V.
