Attribute
Description
Manufacturer Part Number

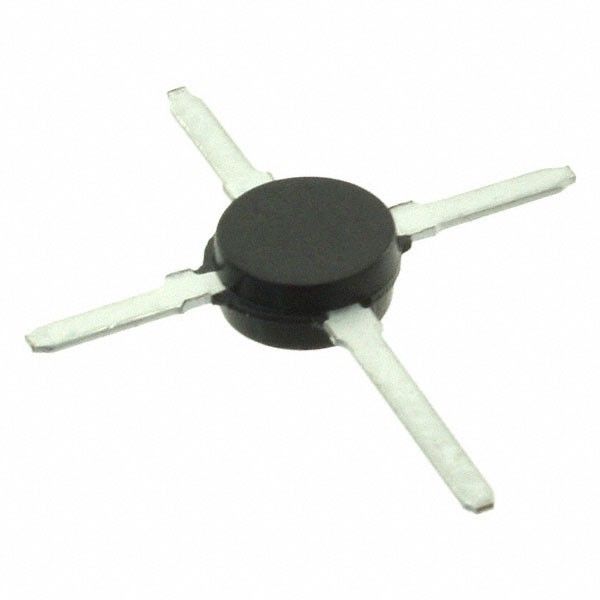

MRF581AG
Manufacturer
Description
TRANS RF NPN 5GHZ 15V MACR0 X
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Transistor Class | NPN | |
| Max Collector-Emitter Breakdown | 15V | |
| Transition Freq | 5GHz | |
| Noise Figure @ f | 3dB ~ 3.5dB @ 500MHz | |
| Amplification Factor | 13dB ~ 15.5dB | |
| Maximum Power Handling | 1.25W | |
| DC Current Gain (hFE) @ Ic, Vce | 90 @ 50mA, 5V | |
| Maximum Collector Amps | 200mA | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Macro-X |
Description
Measures resistance at forward current 5GHz for LED or diode evaluation. Provides a maximum collector current (Ic) of 200mA. Features a DC current gain hFE at Ic evaluated at 90 @ 50mA, 5V. Offers 5GHz transition frequency for seamless signal modulation. Delivers 13dB ~ 15.5dB gain to improve signal amplification efficiency. Mounting style Surface Mount for structural integrity. Enclosure/case Macro-X providing mechanical and thermal shielding. Peak power 1.25W for device protection. Type of transistor NPN for circuit architecture. Peak Vce(on) at Vge 13dB ~ 15.5dB for transistor parameters. Highest collector-emitter breakdown voltage 15V.
