Attribute
Description

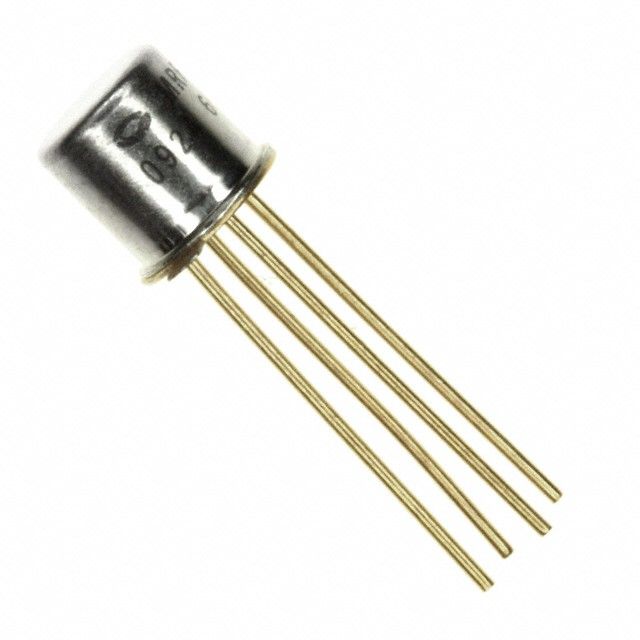

Manufacturer Part Number
MRF904
Manufacturer
Description
TRANS NPN 15V 30MA TO-72
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Transistor Class | NPN | |
| Max Collector-Emitter Breakdown | 15V | |
| Transition Freq | 4GHz | |
| Noise Figure @ f | 1.5dB @ 450MHz | |
| Amplification Factor | 6.5dB ~ 10.5dB | |
| Maximum Power Handling | 200mW | |
| DC Current Gain (hFE) @ Ic, Vce | 30 @ 5mA, 5V | |
| Maximum Collector Amps | 30mA | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | TO-72 |
Description
Measures resistance at forward current 4GHz for LED or diode evaluation. Provides a maximum collector current (Ic) of 30mA. Features a DC current gain hFE at Ic evaluated at 30 @ 5mA, 5V. Offers 4GHz transition frequency for seamless signal modulation. Delivers 6.5dB ~ 10.5dB gain to improve signal amplification efficiency. Mounting style Through Hole for structural integrity. Enclosure/case TO-72 providing mechanical and thermal shielding. Peak power 200mW for device protection. Type of transistor NPN for circuit architecture. Peak Vce(on) at Vge 6.5dB ~ 10.5dB for transistor parameters. Highest collector-emitter breakdown voltage 15V.
