Attribute
Description
Manufacturer Part Number
MBR12035CT
Manufacturer
Description
Diodes Rectifiers - Arrays and Modules,
35V,
120A (DC)
Manufacturer Lead Time
10 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Setup | - | |
| Semiconductor Diode Category | Schottky | |
| Reverse DC Voltage(Vr) (Max) | 35V | |
| Average DC Output Current | 120A (DC) | |
| Forward Voltage (Vf) | 650mV @ 120A | |
| Operational Speed Rating | Fast Recovery =< 500ns, > 200mA (Io) | |
| trr Recovery | - | |
| Leakage at Vr | 3mA @ 20V | |
| Attachment Mounting Style | Chassis Mount | |

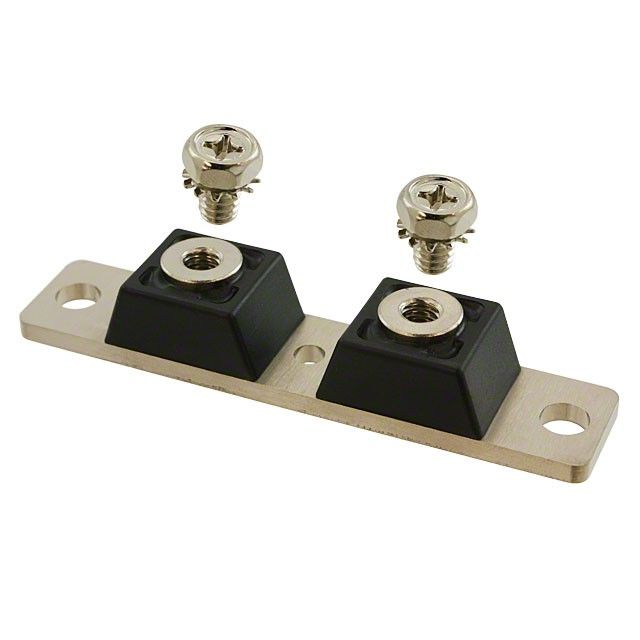

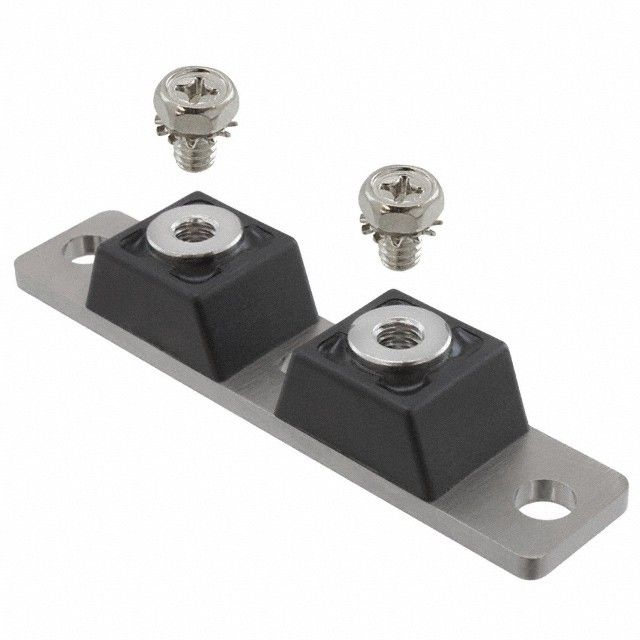

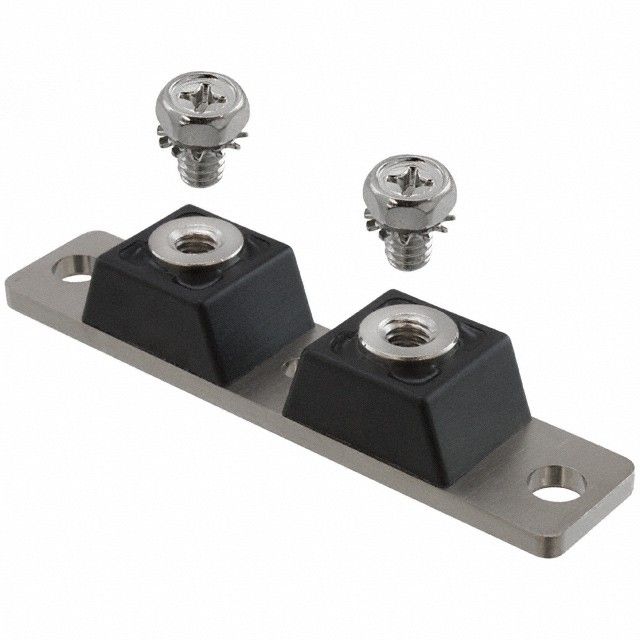

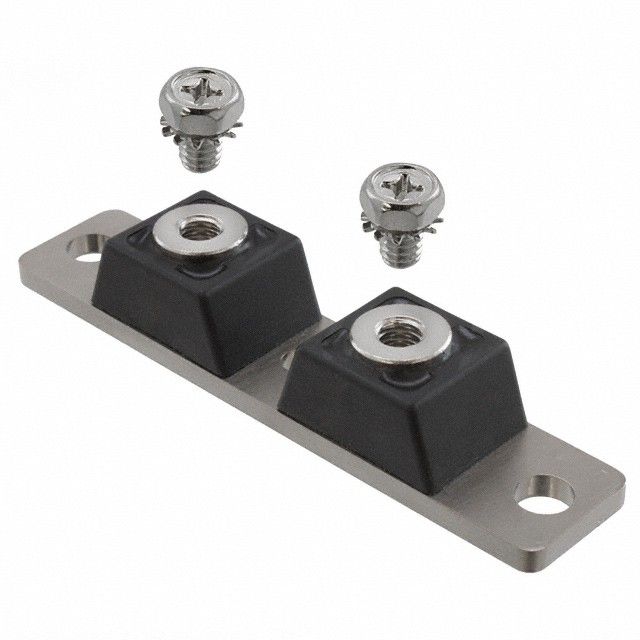

| Component Housing Style | Twin Tower |
Description
Measures resistance at forward current 650mV @ 120A for LED or diode evaluation. Delivers average rectified current (Io) recorded at 120A (DC). Includes diode type indicated as Schottky. Mounting style Chassis Mount for structural integrity. Enclosure/case Twin Tower providing mechanical and thermal shielding. Reverse leakage current at Vr 3mA @ 20V for diode parameters. Velocity Fast Recovery =< 500ns, > 200mA (Io) for mechanical or data efficiency. Peak Vce(on) at Vge Schottky for transistor parameters.
