Attribute
Description
Manufacturer Part Number
MBR40045CTS
Manufacturer
Description
Diodes Rectifiers - Arrays and Modules,
45V,
400A (DC)
Manufacturer Lead Time
10 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Setup | 2 Independent | |
| Semiconductor Diode Category | Schottky | |
| Reverse DC Voltage(Vr) (Max) | 45V | |
| Average DC Output Current | 400A (DC) | |
| Forward Voltage (Vf) | 1.2V @ 200A | |
| Operational Speed Rating | Fast Recovery =< 500ns, > 200mA (Io) | |
| trr Recovery | - | |
| Leakage at Vr | 5µA @ 36V | |
| Attachment Mounting Style | - | |

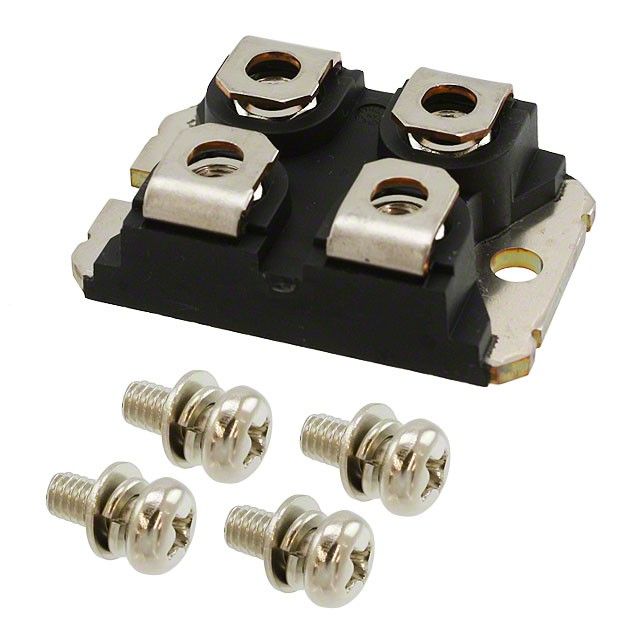

| Component Housing Style | SOT-227-4 |
Description
Measures resistance at forward current 1.2V @ 200A for LED or diode evaluation. Delivers average rectified current (Io) recorded at 400A (DC). Utilizes diode arrangement recognized as 2 Independent. Includes diode type indicated as Schottky. Enclosure/case SOT-227-4 providing mechanical and thermal shielding. Reverse leakage current at Vr 5µA @ 36V for diode parameters. Velocity Fast Recovery =< 500ns, > 200mA (Io) for mechanical or data efficiency. Peak Vce(on) at Vge Schottky for transistor parameters.
