Attribute
Description
Manufacturer Part Number
MBRH12040
Manufacturer
Description
Diodes Rectifiers - Arrays and Modules,
40V,
120A (DC)
Note :
GST will not be applied to orders shipping outside of India
Stock: 72
Distributor: 47
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 72 | ₹ 5,239.43 | ₹ 3,77,238.96 |
| 36 | ₹ 5,480.62 | ₹ 1,97,302.32 |
| 18 | ₹ 5,745.84 | ₹ 1,03,425.12 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Setup | - | |
| Semiconductor Diode Category | Schottky | |
| Reverse DC Voltage(Vr) (Max) | 40V | |
| Average DC Output Current | 120A (DC) | |
| Forward Voltage (Vf) | 650mV @ 120A | |
| Operational Speed Rating | Fast Recovery =< 500ns, > 200mA (Io) | |
| trr Recovery | - | |
| Leakage at Vr | 4mA @ 20V | |
| Attachment Mounting Style | - | |

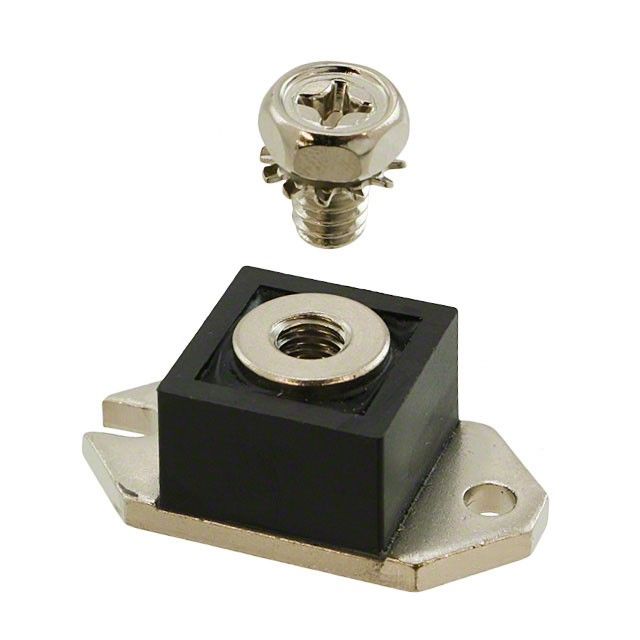

| Component Housing Style | D-67 |
Description
Measures resistance at forward current 650mV @ 120A for LED or diode evaluation. Delivers average rectified current (Io) recorded at 120A (DC). Includes diode type indicated as Schottky. Enclosure/case D-67 providing mechanical and thermal shielding. Reverse leakage current at Vr 4mA @ 20V for diode parameters. Velocity Fast Recovery =< 500ns, > 200mA (Io) for mechanical or data efficiency. Peak Vce(on) at Vge Schottky for transistor parameters.
