Attribute
Description
Manufacturer Part Number
BAS40-07,215
Manufacturer
Description
Schottky barrier diode
Note :
GST will not be applied to orders shipping outside of India
Stock: 168977
Distributor: 135
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100000 | ₹ 4.97 | ₹ 4,97,000.00 |
| 10000 | ₹ 5.93 | ₹ 59,300.00 |
| 1000 | ₹ 6.65 | ₹ 6,650.00 |
| 500 | ₹ 7.21 | ₹ 3,605.00 |
| 100 | ₹ 8.01 | ₹ 801.00 |
Stock: 6977
Distributor: 160
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100000 | ₹ 5.54 | ₹ 5,54,000.00 |
| 10000 | ₹ 6.60 | ₹ 66,000.00 |
| 1000 | ₹ 7.40 | ₹ 7,400.00 |
| 500 | ₹ 8.04 | ₹ 4,020.00 |
| 100 | ₹ 8.93 | ₹ 893.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Setup | 2 Independent | |
| Semiconductor Diode Category | Schottky | |
| Reverse DC Voltage(Vr) (Max) | 40V | |
| Average DC Output Current | 120mA (DC) | |
| Forward Voltage (Vf) | 1V @ 40mA | |
| Operational Speed Rating | Small Signal =< 200mA (Io), Any Speed | |
| trr Recovery | - | |
| Leakage at Vr | 10µA @ 40V | |
| Attachment Mounting Style | Surface Mount | |

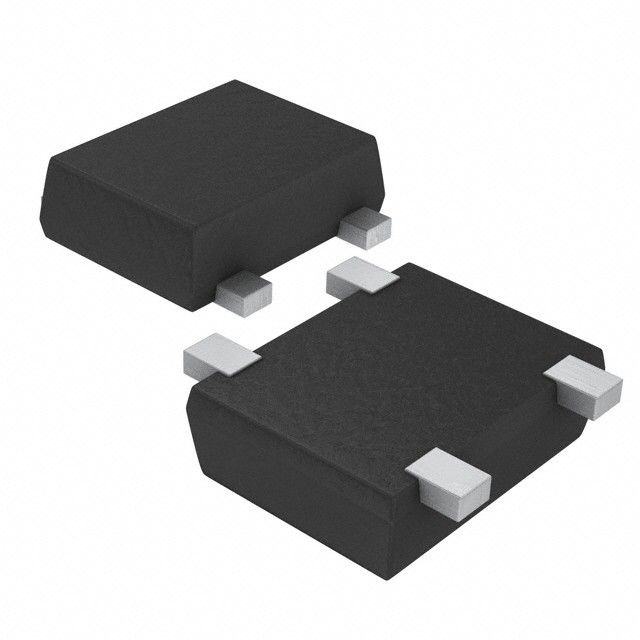

| Component Housing Style | TO-253-4, TO-253AA |
Description
Measures resistance at forward current 1V @ 40mA for LED or diode evaluation. Delivers average rectified current (Io) recorded at 120mA (DC). Utilizes diode arrangement recognized as 2 Independent. Includes diode type indicated as Schottky. Mounting style Surface Mount for structural integrity. Enclosure/case TO-253-4, TO-253AA providing mechanical and thermal shielding. Reverse leakage current at Vr 10µA @ 40V for diode parameters. Velocity Small Signal =< 200mA (Io), Any Speed for mechanical or data efficiency. Peak Vce(on) at Vge Schottky for transistor parameters.
