Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Semiconductor Diode Category | Standard | |
| Reverse DC Voltage(Vr) | 70V | |
| Average DC Output Current | 200mA | |
| Forward Voltage (Vf) | 1V @ 20mA | |
| Operational Speed Rating | Small Signal =< 200mA (Io), Any Speed | |
| trr Recovery | - | |
| Reverse Leakage Current @ Vr | 25nA @ 60V | |
| Capacitance at Voltage and Frequency | 8pF @ 0V, 1MHz | |
| Heat Dissipation Resistance | 300°C/W Ja | |
| Junction Temp Range | 175°C (Max) | |
| Attachment Mounting Style | Through Hole | |

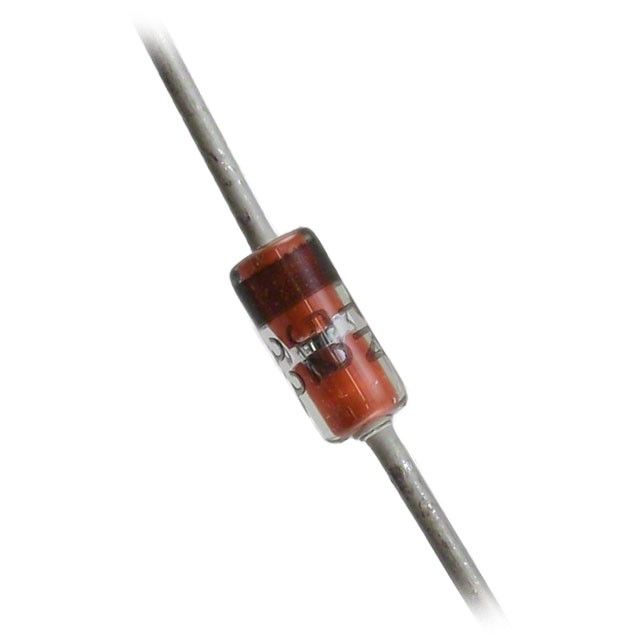

| Component Housing Style | DO-204AH, DO-35, Axial |
Description
Measures resistance at forward current 1V @ 20mA for LED or diode evaluation. Accommodates capacitance at Vr and frequency specified as 8pF @ 0V, 1MHz. Delivers average rectified current (Io) recorded at 200mA. Includes diode type indicated as Standard. Mounting style Through Hole for structural integrity. Resistance in the on-state 300°C/W Ja for efficient conduction. Junction operating temperature 175°C (Max) for component protection. Enclosure/case DO-204AH, DO-35, Axial providing mechanical and thermal shielding. Velocity Small Signal =< 200mA (Io), Any Speed for mechanical or data efficiency. Thermal resistance value 300°C/W Ja for temperature regulation. Peak Vce(on) at Vge Standard for transistor parameters.
