Data Sheet
Attribute
Description
Manufacturer Part Number
1N1190R
Manufacturer
Description
Diodes Rectifiers - Single,
600V,
35A
Manufacturer Lead Time
10 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 282.13 | ₹ 282.13 |
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 388.93 | ₹ 388.93 |
| 25 | ₹ 378.25 | ₹ 9,456.25 |
| 100 | ₹ 338.20 | ₹ 33,820.00 |
| 250 | ₹ 302.60 | ₹ 75,650.00 |
| 500 | ₹ 262.55 | ₹ 1,31,275.00 |
| 1000 | ₹ 253.65 | ₹ 2,53,650.00 |
Stock:
Distributor: 2
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 502.85 | ₹ 502.85 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Type | Standard, Reverse Polarity | |
| Reverse DC Voltage(Vr) | 600V | |
| Current - Average Rectified (Io) | 35A | |
| Forward Voltage (Vf) | 1.2V @ 35A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Reverse Leakage Current @ Vr | 10µA @ 50V | |
| Capacitance @ Vr, F | - | |
| Thermal Resistance | 0.25°C/W Jc | |
| Operating Temperature - Junction | -65°C ~ 190°C | |
| Mounting Type | Chassis, Stud Mount | |

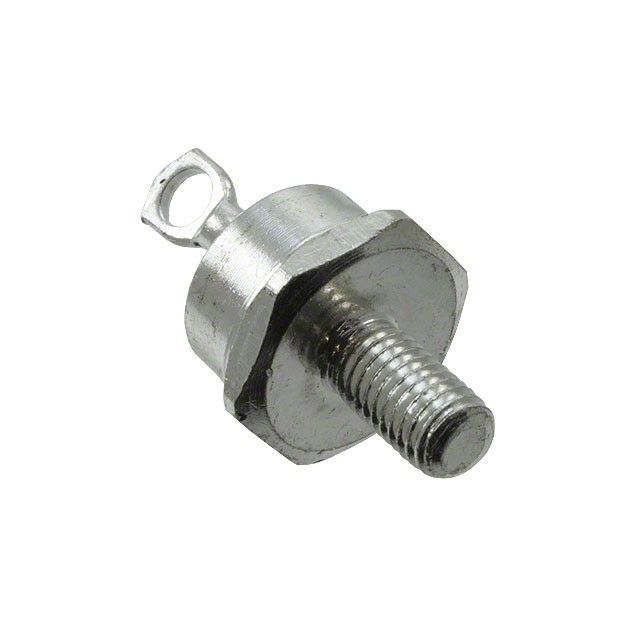

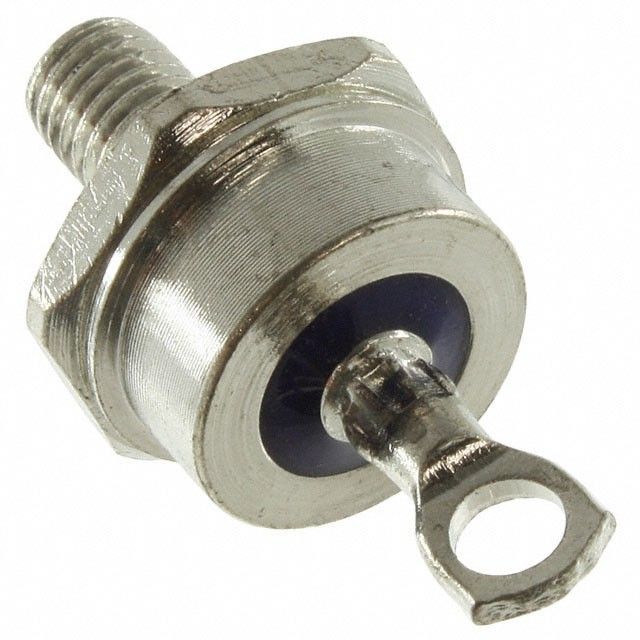

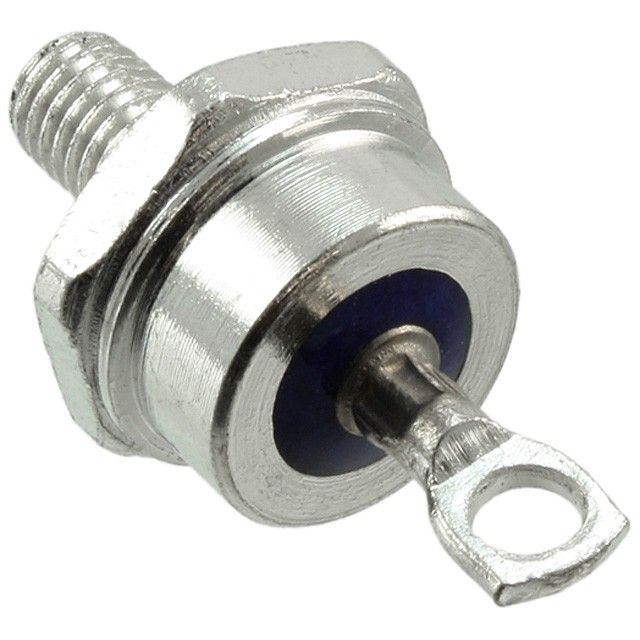

| Package / Case | DO-203AB, DO-5, Stud |
