Data Sheet
Attribute
Description
Manufacturer Part Number
1N1199A
Manufacturer
Description
No description available
Manufacturer Lead Time
10 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 188.68 | ₹ 188.68 |
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 317.73 | ₹ 317.73 |
| 25 | ₹ 308.83 | ₹ 7,720.75 |
| 100 | ₹ 277.68 | ₹ 27,768.00 |
| 250 | ₹ 248.31 | ₹ 62,077.50 |
| 500 | ₹ 215.38 | ₹ 1,07,690.00 |
| 1000 | ₹ 208.26 | ₹ 2,08,260.00 |
Stock:
Distributor: 2
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 335.53 | ₹ 335.53 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Type | Standard | |
| Reverse DC Voltage(Vr) | 50V | |
| Current - Average Rectified (Io) | 12A | |
| Forward Voltage (Vf) | 1.1V @ 12A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Reverse Leakage Current @ Vr | 10µA @ 50V | |
| Capacitance @ Vr, F | - | |
| Thermal Resistance | 2°C/W Jc | |
| Operating Temperature - Junction | -65°C ~ 200°C | |
| Mounting Type | Chassis, Stud Mount | |

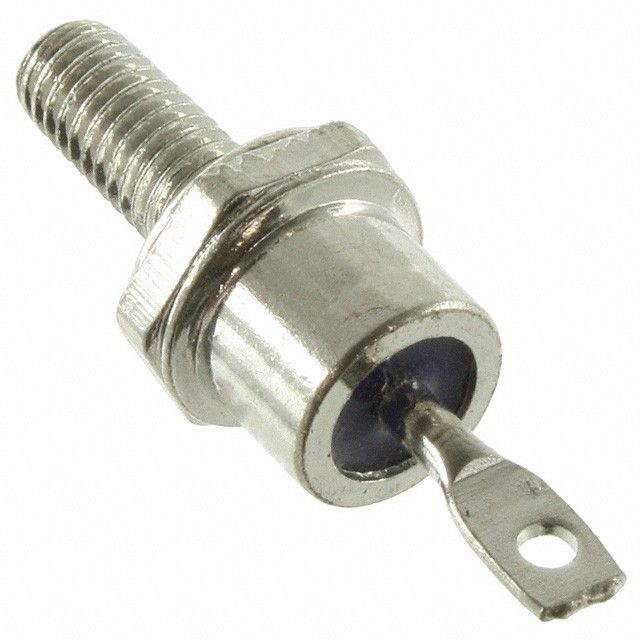

| Package / Case | DO-203AA, DO-4, Stud |
