1N3881
Data Sheet
Attribute
Description
Manufacturer Part Number
1N3881
Manufacturer
Description
Diodes Rectifiers - Single,
200V,
6A
Manufacturer Lead Time
10 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Semiconductor Diode Category | Standard | |
| Reverse DC Voltage(Vr) | 200V | |
| Average DC Output Current | 6A | |
| Forward Voltage (Vf) | 1.4V @ 6A | |
| Operational Speed Rating | Fast Recovery =< 500ns, > 200mA (Io) | |
| trr Recovery | 200ns | |
| Reverse Leakage Current @ Vr | 15µA @ 50V | |
| Capacitance at Voltage and Frequency | - | |
| Heat Dissipation Resistance | 2.5°C/W Jc | |
| Junction Temp Range | -65°C ~ 150°C | |
| Attachment Mounting Style | Chassis, Stud Mount | |

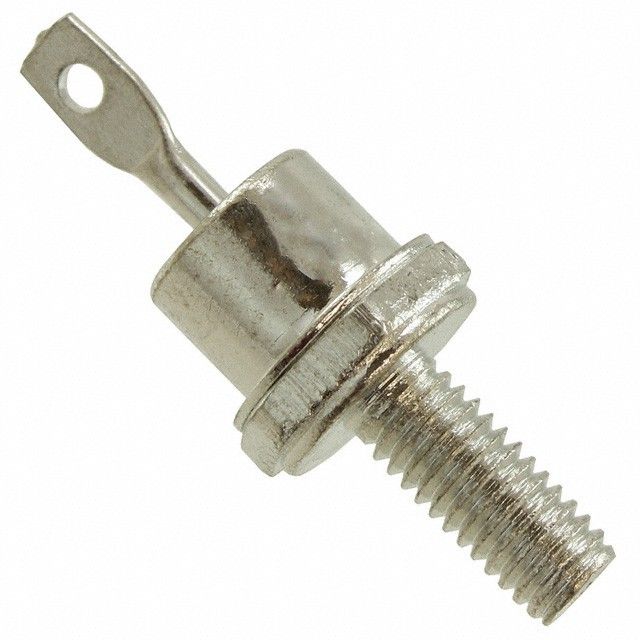

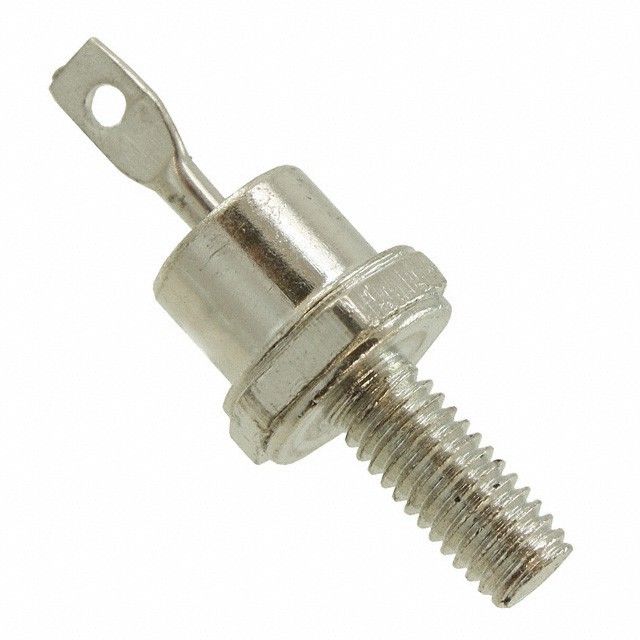

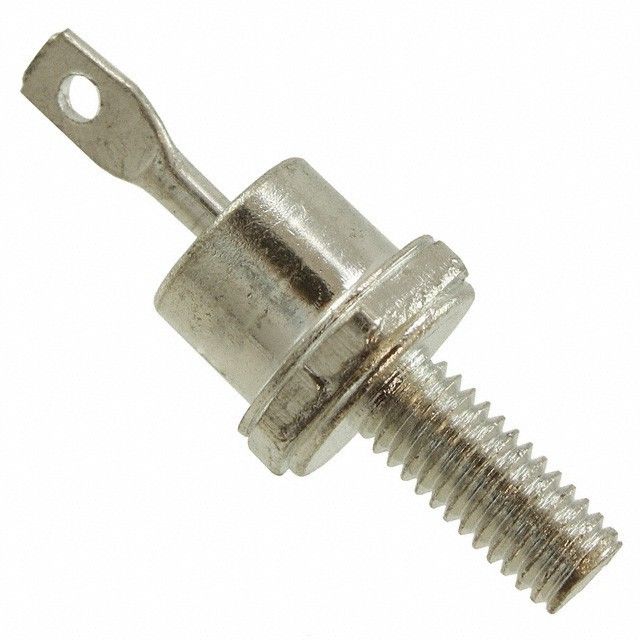

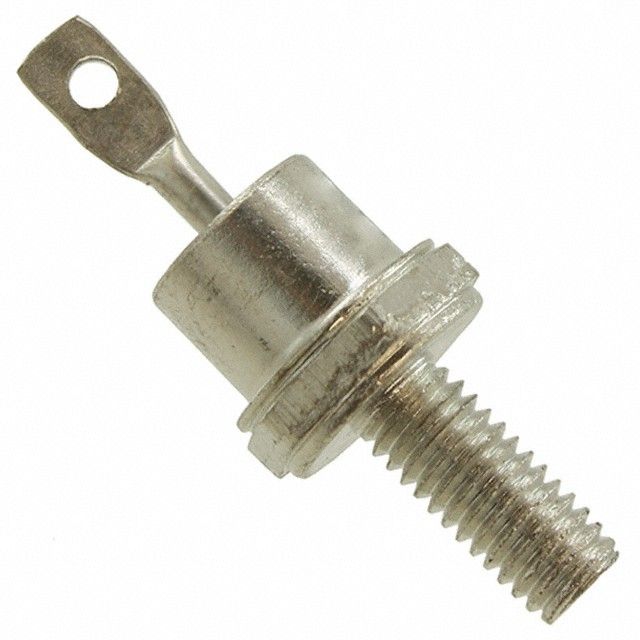

| Component Housing Style | DO-203AA, DO-4, Stud |
Description
Measures resistance at forward current 1.4V @ 6A for LED or diode evaluation. Delivers average rectified current (Io) recorded at 6A. Includes diode type indicated as Standard. Mounting style Chassis, Stud Mount for structural integrity. Resistance in the on-state 2.5°C/W Jc for efficient conduction. Junction operating temperature -65°C ~ 150°C for component protection. Enclosure/case DO-203AA, DO-4, Stud providing mechanical and thermal shielding. Reverse recovery duration 200ns for switching diodes. Velocity Fast Recovery =< 500ns, > 200mA (Io) for mechanical or data efficiency. Thermal resistance value 2.5°C/W Jc for temperature regulation. Peak Vce(on) at Vge Standard for transistor parameters.
