Data Sheet Unavailable
Attribute
Description

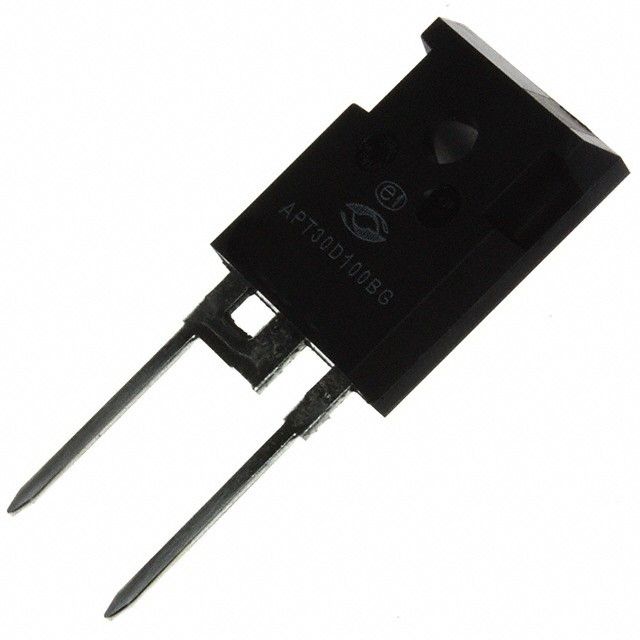

Manufacturer Part Number
APT30D100BG
Manufacturer
Description
Diodes Rectifiers - Single,
1000V (1kV),
30A
Manufacturer Lead Time
1 week
No stock available right now
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Type | Standard | |
| Reverse DC Voltage(Vr) | 1000V (1kV) | |
| Current - Average Rectified (Io) | 30A | |
| Forward Voltage (Vf) | 2.3V @ 30A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 290ns | |
| Reverse Leakage Current @ Vr | 250µA @ 1000V | |
| Capacitance @ Vr, F | - | |
| Thermal Resistance | 0.61°C/W Jc | |
| Operating Temperature - Junction | -55°C ~ 175°C | |
| Mounting Type | Through Hole, Radial | |
| Package / Case | TO-247-2 |
