Data Sheet Unavailable
Attribute
Description
Manufacturer Part Number
APT30S20BG
Manufacturer
Description
Diodes Rectifiers - Single,
200V,
45A
Manufacturer Lead Time
1 week
No stock available right now
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Diode Type | Schottky | |
| Reverse DC Voltage(Vr) | 200V | |
| Current - Average Rectified (Io) | 45A | |
| Forward Voltage (Vf) | 850mV @ 30A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 55ns | |
| Reverse Leakage Current @ Vr | 500µA @ 200V | |
| Capacitance @ Vr, F | - | |
| Thermal Resistance | 0.58°C/W Jc | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Mounting Type | Through Hole, Radial | |

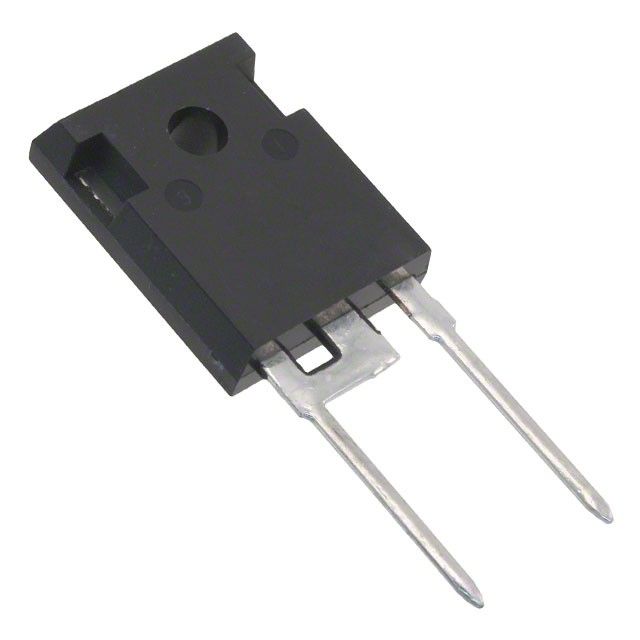

| Package / Case | TO-247-2 |
