Attribute
Description
Manufacturer Part Number
R6221640ESOO
Manufacturer
Description
Diodes Rectifiers - Single,
1600V (1.6kV),
400A
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Semiconductor Diode Category | Standard | |
| Reverse DC Voltage(Vr) | 1600V (1.6kV) | |
| Average DC Output Current | 400A | |
| Forward Voltage (Vf) | 2V @ 800A | |
| Operational Speed Rating | Standard Recovery >500ns, > 200mA (Io) | |
| trr Recovery | 1µs | |
| Reverse Leakage Current @ Vr | 50mA @ 1600V | |
| Capacitance at Voltage and Frequency | - | |
| Heat Dissipation Resistance | 0.025°C/W Cs | |
| Junction Temp Range | -40°C ~ 150°C | |
| Attachment Mounting Style | Surface Mount | |

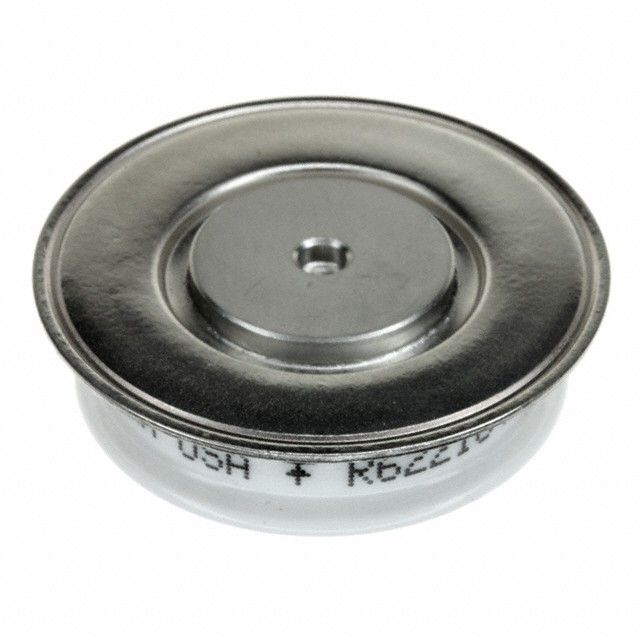

| Component Housing Style | DO-200AB, B-PUK |
Description
Measures resistance at forward current 2V @ 800A for LED or diode evaluation. Delivers average rectified current (Io) recorded at 400A. Includes diode type indicated as Standard. Mounting style Surface Mount for structural integrity. Resistance in the on-state 0.025°C/W Cs for efficient conduction. Junction operating temperature -40°C ~ 150°C for component protection. Enclosure/case DO-200AB, B-PUK providing mechanical and thermal shielding. Reverse recovery duration 1µs for switching diodes. Velocity Standard Recovery >500ns, > 200mA (Io) for mechanical or data efficiency. Thermal resistance value 0.025°C/W Cs for temperature regulation. Peak Vce(on) at Vge Standard for transistor parameters.
