SB0503EC-TR
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Semiconductor Diode Category | Schottky | |
| Reverse DC Voltage(Vr) | 30V | |
| Average DC Output Current | 500mA | |
| Forward Voltage (Vf) | 650mV @ 500mA | |
| Operational Speed Rating | Fast Recovery =< 500ns, > 200mA (Io) | |
| trr Recovery | 10ns | |
| Reverse Leakage Current @ Vr | 1.5µA @ 15V | |
| Capacitance at Voltage and Frequency | 6pF @ 10V, 1MHz | |
| Heat Dissipation Resistance | 200°C/W Ja | |
| Junction Temp Range | -55°C ~ 150°C | |
| Attachment Mounting Style | Surface Mount | |

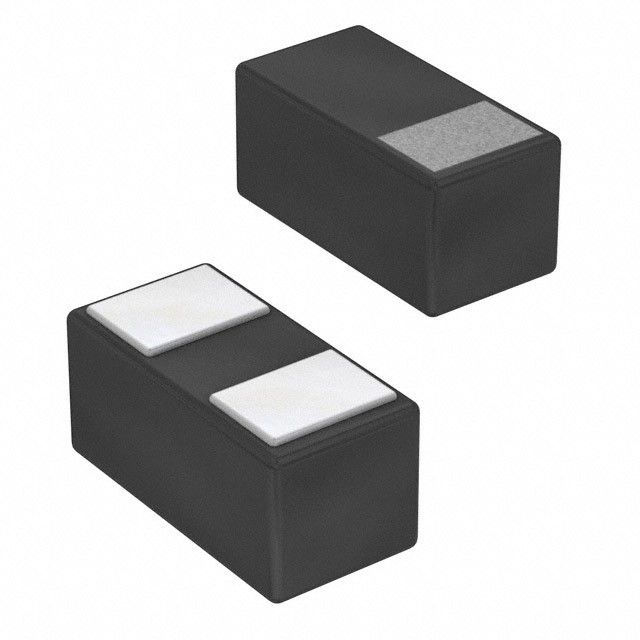

| Component Housing Style | 2-UDFN |
Description
Measures resistance at forward current 650mV @ 500mA for LED or diode evaluation. Accommodates capacitance at Vr and frequency specified as 6pF @ 10V, 1MHz. Delivers average rectified current (Io) recorded at 500mA. Includes diode type indicated as Schottky. Mounting style Surface Mount for structural integrity. Resistance in the on-state 200°C/W Ja for efficient conduction. Junction operating temperature -55°C ~ 150°C for component protection. Enclosure/case 2-UDFN providing mechanical and thermal shielding. Reverse recovery duration 10ns for switching diodes. Velocity Fast Recovery =< 500ns, > 200mA (Io) for mechanical or data efficiency. Thermal resistance value 200°C/W Ja for temperature regulation. Peak Vce(on) at Vge Schottky for transistor parameters.
