Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 600V | |
| Continuous Drain Current at 25C | 11A (Tc) | |
| Max On-State Resistance | 399 mOhm @ 3.8A, 10V | |
| Max Threshold Gate Voltage | 4.1V @ 250µA | |
| Gate Charge at Vgs | 11nC @ 10V | |
| Input Cap at Vds | 545pF @ 100V | |
| Maximum Power Handling | 208W | |
| Attachment Mounting Style | Surface Mount | |

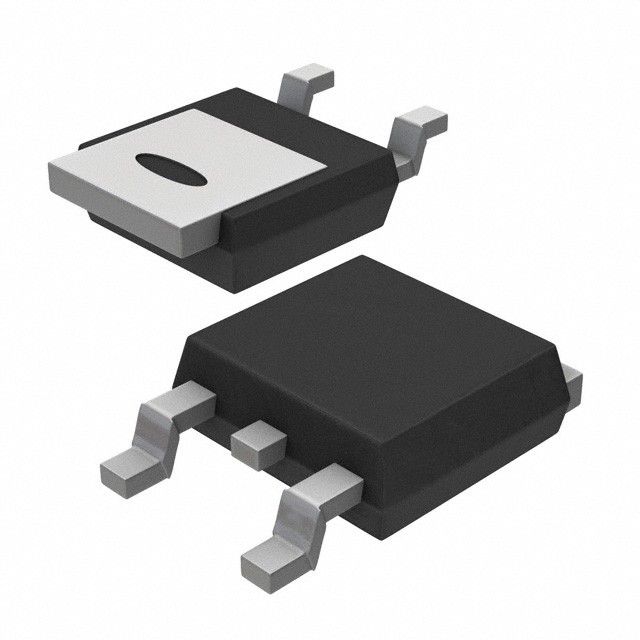

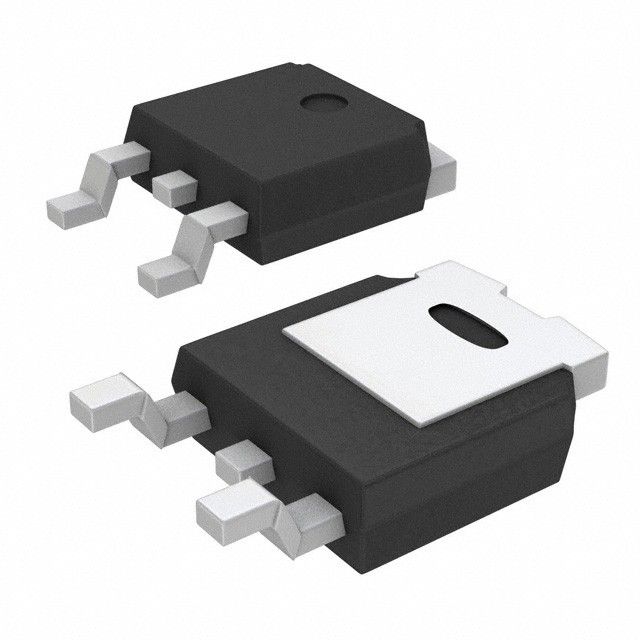

| Component Housing Style | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Description
Measures resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode evaluation. Supports a continuous drain current (Id) of 11A (Tc) at 25°C. Supports Vdss drain-to-source voltage rated at 600V. Accommodates FET classification identified as MOSFET N-Channel, Metal Oxide. Upholds 11nC @ 10V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 545pF @ 100V at Vds for optimal performance. Mounting style Surface Mount for structural integrity. Enclosure/case TO-252-3, DPak (2 Leads + Tab), SC-63 providing mechanical and thermal shielding. Peak power 208W for device protection. Peak Rds(on) at Id 11nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 399 mOhm @ 3.8A, 10V for MOSFET criteria. Peak Vgs(th) at Id 4.1V @ 250µA for MOSFET threshold level.
