Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET P-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 30V | |
| Continuous Drain Current at 25C | 21A (Ta), 85A (Tc) | |
| Max On-State Resistance | 3.1 mOhm @ 20A, 10V | |
| Max Threshold Gate Voltage | 2.2V @ 250µA | |
| Gate Charge at Vgs | 196nC @ 10V | |
| Input Cap at Vds | 9120pF @ 15V | |
| Maximum Power Handling | 2.3W | |
| Attachment Mounting Style | Surface Mount | |

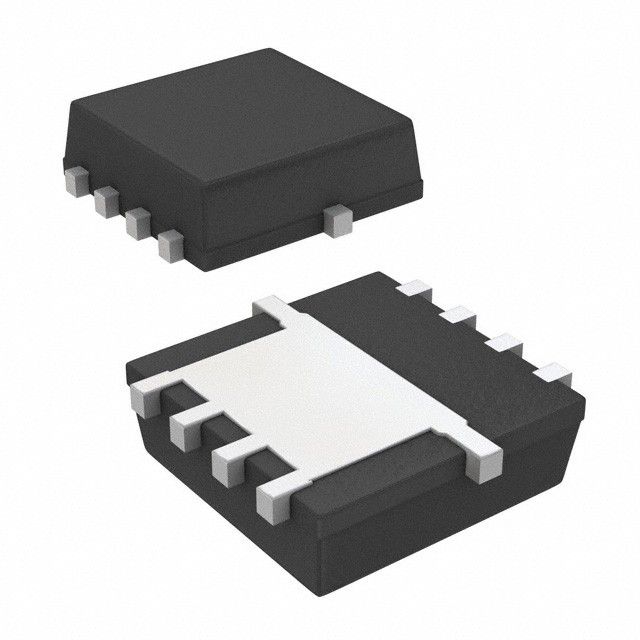

| Component Housing Style | 8-PowerVDFN |
Description
Measures resistance at forward current MOSFET P-Channel, Metal Oxide for LED or diode evaluation. Supports a continuous drain current (Id) of 21A (Ta), 85A (Tc) at 25°C. Supports Vdss drain-to-source voltage rated at 30V. Accommodates FET classification identified as MOSFET P-Channel, Metal Oxide. Upholds 196nC @ 10V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 9120pF @ 15V at Vds for optimal performance. Mounting style Surface Mount for structural integrity. Enclosure/case 8-PowerVDFN providing mechanical and thermal shielding. Peak power 2.3W for device protection. Peak Rds(on) at Id 196nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 3.1 mOhm @ 20A, 10V for MOSFET criteria. Peak Vgs(th) at Id 2.2V @ 250µA for MOSFET threshold level.
