Data Sheet
Attribute
Description

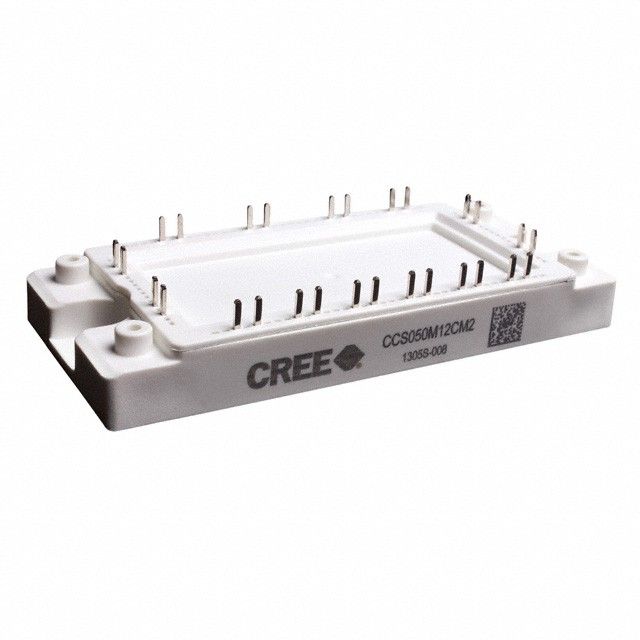

Manufacturer Part Number
CCS050M12CM2
Manufacturer
Description
No description available
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| FET Type | 6 N-Channel (3-Phase Bridge) | |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) | |
| Current - Continuous Drain (Id) @ 25°C | 87A | |
| Rds On (Max) @ Id, Vgs | 34 mOhm @ 50A, 20V | |
| Vgs(th) (Max) @ Id | 2.3V @ 2.5mA | |
| Gate Charge (Qg) @ Vgs | 180nC @ 20V | |
| Input Capacitance (Ciss) @ Vds | 2.810nF @ 800V | |
| Power - Max | 337W | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module |
