Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET P-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 60V | |
| Continuous Drain Current at 25C | 5.7A (Ta), 13.5A (Tc) | |
| Max On-State Resistance | 100 mOhm @ 5.7A, 10V | |
| Max Threshold Gate Voltage | 3V @ 250µA | |
| Gate Charge at Vgs | 20nC @ 10V | |
| Input Cap at Vds | 1055pF @ 30V | |
| Maximum Power Handling | 2.1W | |
| Attachment Mounting Style | Surface Mount | |

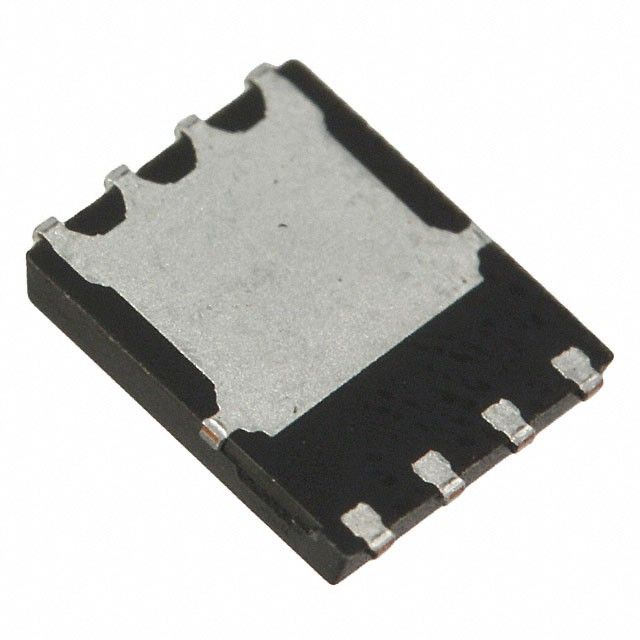

| Component Housing Style | 8-PowerVDFN |
Description
Measures resistance at forward current MOSFET P-Channel, Metal Oxide for LED or diode evaluation. Supports a continuous drain current (Id) of 5.7A (Ta), 13.5A (Tc) at 25°C. Supports Vdss drain-to-source voltage rated at 60V. Accommodates FET classification identified as MOSFET P-Channel, Metal Oxide. Upholds 20nC @ 10V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 1055pF @ 30V at Vds for optimal performance. Mounting style Surface Mount for structural integrity. Enclosure/case 8-PowerVDFN providing mechanical and thermal shielding. Peak power 2.1W for device protection. Peak Rds(on) at Id 20nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 100 mOhm @ 5.7A, 10V for MOSFET criteria. Peak Vgs(th) at Id 3V @ 250µA for MOSFET threshold level.
