Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 30V | |
| Continuous Drain Current at 25C | 21A | |
| Max On-State Resistance | 3.6 mOhm @ 21A, 10V | |
| Max Threshold Gate Voltage | 3V @ 1mA | |
| Gate Charge at Vgs | 91nC @ 10V | |
| Input Cap at Vds | 3610pF @ 15V | |
| Maximum Power Handling | 1W | |
| Attachment Mounting Style | Surface Mount | |

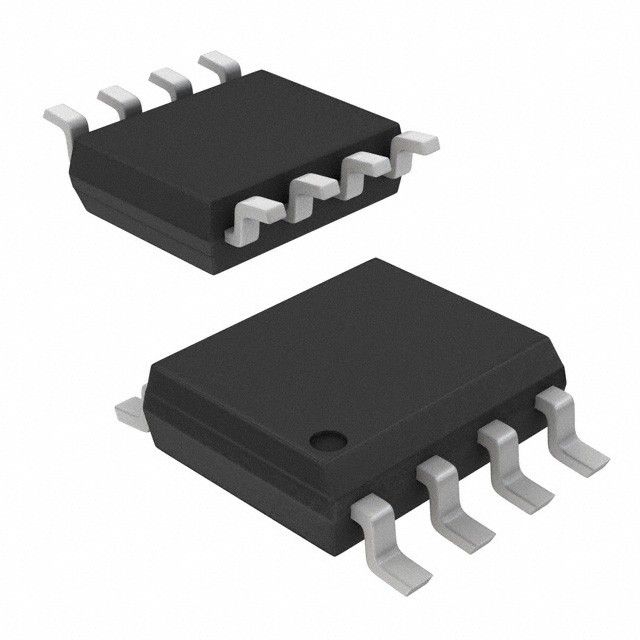

| Component Housing Style | 8-SOIC (0.154", 3.90mm Width) |
Description
Measures resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode evaluation. Supports a continuous drain current (Id) of 21A at 25°C. Supports Vdss drain-to-source voltage rated at 30V. Accommodates FET classification identified as MOSFET N-Channel, Metal Oxide. Upholds 91nC @ 10V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 3610pF @ 15V at Vds for optimal performance. Mounting style Surface Mount for structural integrity. Enclosure/case 8-SOIC (0.154", 3.90mm Width) providing mechanical and thermal shielding. Peak power 1W for device protection. Peak Rds(on) at Id 91nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 3.6 mOhm @ 21A, 10V for MOSFET criteria. Peak Vgs(th) at Id 3V @ 1mA for MOSFET threshold level.
