GA03JT12-247
Data Sheet
Attribute
Description
Manufacturer Part Number
GA03JT12-247
Manufacturer
Description
TRANS SJT 1200V 3A TO-247AB
Manufacturer Lead Time
10 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | Silicon Carbide, Normally Off | |
| Drain-Source Breakdown Volts | 1200V (1.2kV) | |
| Continuous Drain Current at 25C | 3A (Tc) (95°C) | |
| Max On-State Resistance | 460 mOhm @ 3A | |
| Max Threshold Gate Voltage | - | |
| Gate Charge at Vgs | - | |
| Input Cap at Vds | - | |
| Maximum Power Handling | 91W | |
| Attachment Mounting Style | Through Hole | |

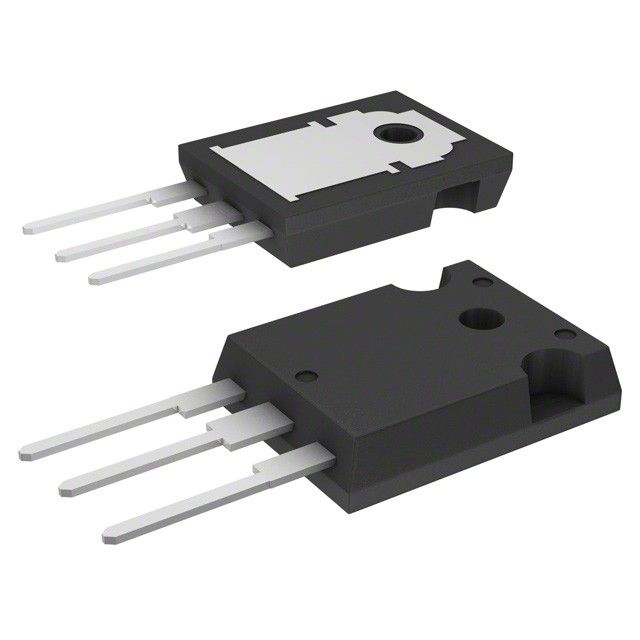

| Component Housing Style | TO-247-3 |
Description
Measures resistance at forward current Silicon Carbide, Normally Off for LED or diode evaluation. Supports a continuous drain current (Id) of 3A (Tc) (95°C) at 25°C. Supports Vdss drain-to-source voltage rated at 1200V (1.2kV). Accommodates FET classification identified as Silicon Carbide, Normally Off. Mounting style Through Hole for structural integrity. Enclosure/case TO-247-3 providing mechanical and thermal shielding. Peak power 91W for device protection. Peak Rds(on) at Id and Vgs 460 mOhm @ 3A for MOSFET criteria.
