Data Sheet
Attribute
Description

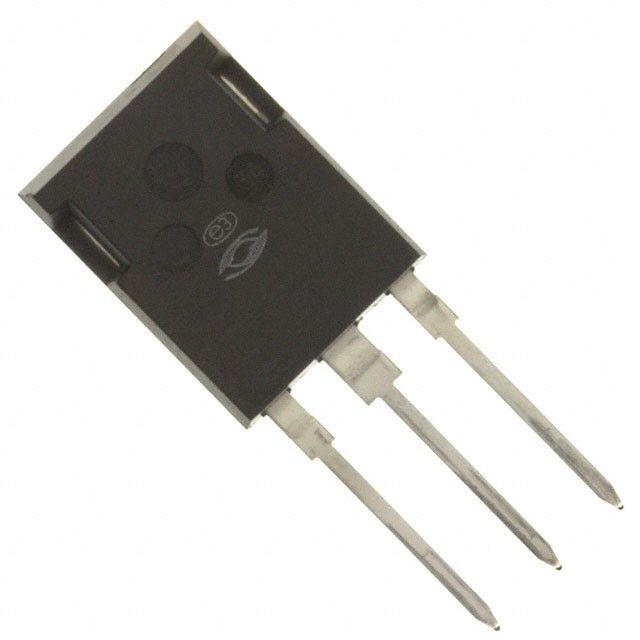

Manufacturer Part Number
APT10045B2LLG
Manufacturer
Description
MOSFET N-CH 1000V 23A T-MAX
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| FET Type | MOSFET N-Channel, Metal Oxide | |
| Drain to Source Voltage (Vdss) | 1000V (1kV) | |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) | |
| Rds On (Max) @ Id, Vgs | 450 mOhm @ 11.5A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA | |
| Gate Charge (Qg) @ Vgs | 154nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 4350pF @ 25V | |
| Power - Max | 565W | |
| Mounting Type | Through Hole | |
| Package / Case | TO-247-3 Variant |
