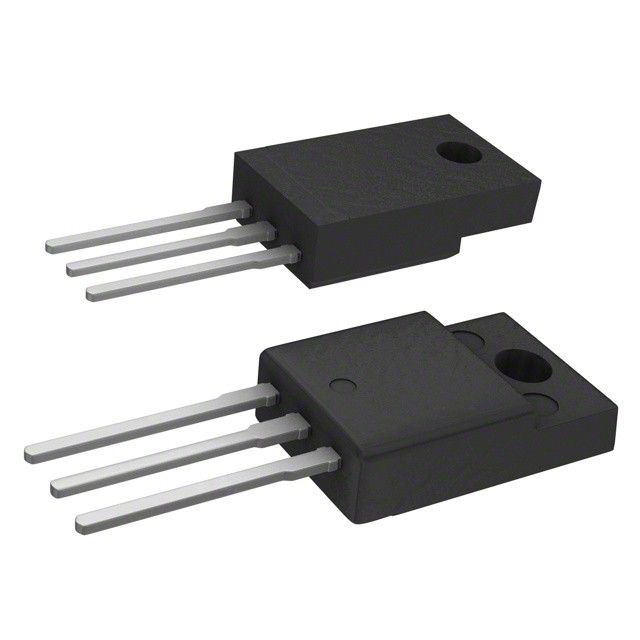

RJK60S4DPE-00#J3
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Field Effect Transistor Type | MOSFET N-Channel, Metal Oxide | |
| Drain-Source Breakdown Volts | 600V | |
| Continuous Drain Current at 25C | 16A (Tc) | |
| Max On-State Resistance | 290 mOhm @ 8A, 10V | |
| Max Threshold Gate Voltage | - | |
| Gate Charge at Vgs | 18nC @ 10V | |
| Input Cap at Vds | 988pF @ 25V | |
| Maximum Power Handling | 104.1W | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | SC-83 |
Description
Measures resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode evaluation. Supports a continuous drain current (Id) of 16A (Tc) at 25°C. Supports Vdss drain-to-source voltage rated at 600V. Accommodates FET classification identified as MOSFET N-Channel, Metal Oxide. Upholds 18nC @ 10V gate charge at Vgs for reliable MOSFET functionality. The input capacitance is rated at 988pF @ 25V at Vds for optimal performance. Mounting style Surface Mount for structural integrity. Enclosure/case SC-83 providing mechanical and thermal shielding. Peak power 104.1W for device protection. Peak Rds(on) at Id 18nC @ 10V for MOSFET efficiency. Peak Rds(on) at Id and Vgs 290 mOhm @ 8A, 10V for MOSFET criteria.
