Data Sheet Unavailable
Attribute
Description
Manufacturer Part Number

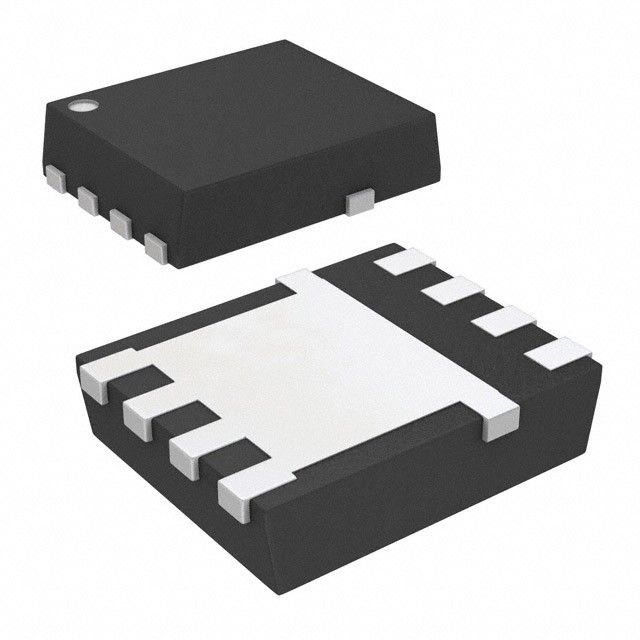

CSD16322Q5C
Manufacturer
Description
MOSFET,
N CH,
25V,
21A,...
Manufacturer Lead Time
1 week
No stock available right now
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| FET Type | MOSFET N-Channel, Metal Oxide | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta), 97A (Tc) | |
| Rds On (Max) @ Id, Vgs | 5 mOhm @ 20A, 8V | |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 9.7nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 1365pF @ 12.5V | |
| Power - Max | 3.1W | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-TDFN Exposed Pad |
