T9S0162003DH
Data Sheet
Attribute
Description
Manufacturer Part Number
T9S0162003DH
Manufacturer
Description

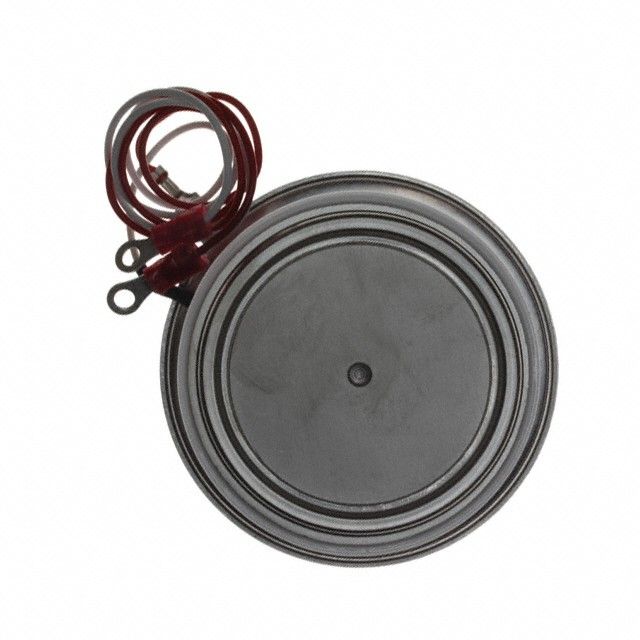

SCR MODULE 1.6KV 3142A TO-200
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Internal Structure Design | Single | |
| Thyristor Diode Count | 1 SCR | |
| Off-State Voltage Rating | 1.6 kV | |
| Max Average On-State Current | 2000 A | |
| Max RMS On-State Current | 3142 A | |
| Max Gate Trigger Volts | 3 V | |
| Max Gate Trigger Amps | 200 mA | |
| Non-Repetitive Surge 50/60Hz | 25456A, 27000A | |
| Maximum Holding Current | - | |
| Ambient Temp Range | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |
| Component Housing Style | TO-200 Variation |
Description
Provides a maximum gate trigger current (Igt) rated at 200 mA. Can handle surge current Itsm rated at 25456A, 27000A for 50/60Hz. Offers maximum average on-state current It(AV) of 2000 A. Accommodates RMS on-state current rated at 3142 A. Mounting style Chassis Mount for structural integrity. Total SCRs/diodes 1 SCR for circuit safeguarding. Enclosure Bulk for component protection or transport. Enclosure/case TO-200 Variation providing mechanical and thermal shielding. Product condition Obsolete for availability and lifecycle. Structure Single for the design of components or materials. Highest gate trigger voltage 3 V for SCRs. Voltage 1.6 kV in off-state for semiconductors or switches.
