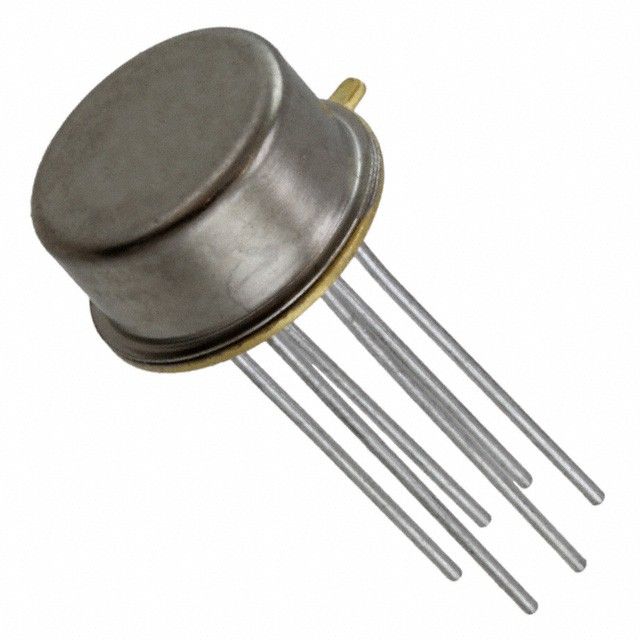

JANTX2N4854
Data Sheet
Attribute
Description
Manufacturer Part Number
JANTX2N4854
Manufacturer
Description
Transistors - Bipolar (BJT) -Single & Arrays,
NPN,
PNP,...
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Transistor Class | NPN, PNP | |
| Maximum Collector Amps | 600mA | |
| Max Collector-Emitter Breakdown | 40V | |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 15mA, 150mA | |
| Collector Cutoff Max | - | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V | |
| Maximum Power Handling | 600mW | |
| Transition Freq | - | |
| Attachment Mounting Style | - | |
| Component Housing Style | - |
Description
Provides a maximum collector current (Ic) of 600mA. Features a DC current gain hFE at Ic evaluated at 400mV @ 15mA, 150mA. Peak power 600mW for device protection. Type of transistor NPN, PNP for circuit architecture. Peak Vce(on) at Vge 400mV @ 15mA, 150mA for transistor parameters. Highest collector-emitter breakdown voltage 40V.
