JANTX2N6058
Data Sheet
Attribute
Description
Manufacturer Part Number
JANTX2N6058
Manufacturer
Description
Transistors - Bipolar (BJT) -Single & Arrays,...
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Transistor Class | NPN - Darlington | |
| Maximum Collector Amps | 12A | |
| Max Collector-Emitter Breakdown | 80V | |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 120mA, 12A | |
| Collector Cutoff Max | 1mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 6A, 3V | |
| Maximum Power Handling | 150W | |
| Transition Freq | - | |
| Attachment Mounting Style | Through Hole | |

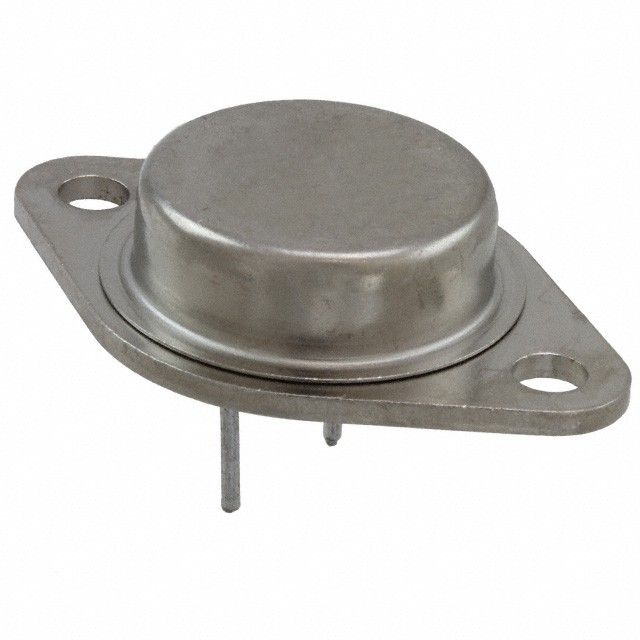

| Component Housing Style | TO-204AA, TO-3 |
Description
Measures resistance at forward current 1mA for LED or diode evaluation. Provides a maximum collector current (Ic) of 12A. Offers a collector cutoff current rated at 1mA. Features a DC current gain hFE at Ic evaluated at 3V @ 120mA, 12A. Mounting style Through Hole for structural integrity. Enclosure/case TO-204AA, TO-3 providing mechanical and thermal shielding. Peak power 150W for device protection. Type of transistor NPN - Darlington for circuit architecture. Peak Vce(on) at Vge 3V @ 120mA, 12A for transistor parameters. Highest collector-emitter breakdown voltage 80V.
