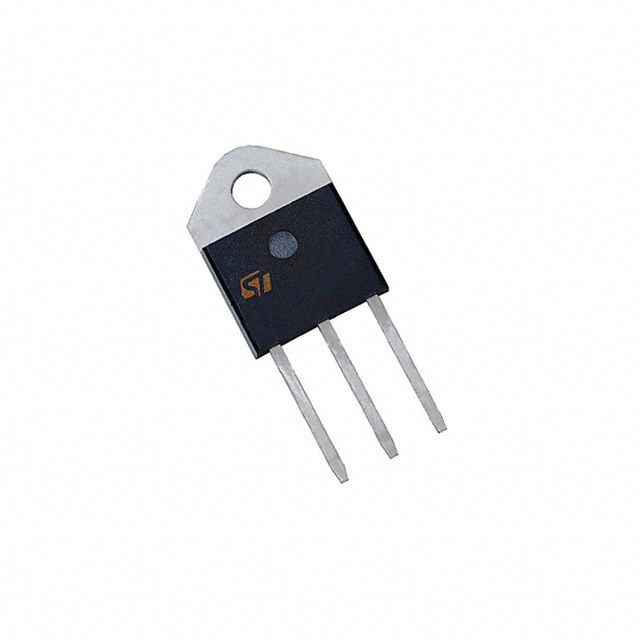

BTA26-400BRG
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| AC Switch Triac Style | Standard | |
| Off-State Voltage Rating | 400 V | |
| Max RMS On-State Current | 25 A | |
| Max Gate Trigger Volts | 1.3 V | |
| Non-Repetitive Surge 50/60Hz | 250A, 260A | |
| Max Gate Trigger Amps | 50 mA | |
| Maximum Holding Current | 80 mA | |
| Setup Arrangement | Single | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | TOP-3 Insulated | |
| Vendor Package Type | TOP3 |
Description
Provided in a setup characterized as Single. Provides a maximum gate trigger current (Igt) rated at 50 mA. Presents maximum hold current recorded at 80 mA. Can handle surge current Itsm rated at 250A, 260A for 50/60Hz. Accommodates RMS on-state current rated at 25 A. Mounting style Through Hole for structural integrity. Operating temperature -40°C ~ 125°C (TJ) for thermal stability. Enclosure Tube for component protection or transport. Enclosure/case TOP-3 Insulated providing mechanical and thermal shielding. Enclosure type TOP3 ensuring device integrity. Product condition Obsolete for availability and lifecycle. Manufacturer package type TOP3 for component choice. Type of triac Standard for alternating current switching. Highest gate trigger voltage 1.3 V for SCRs. Voltage 400 V in off-state for semiconductors or switches.
