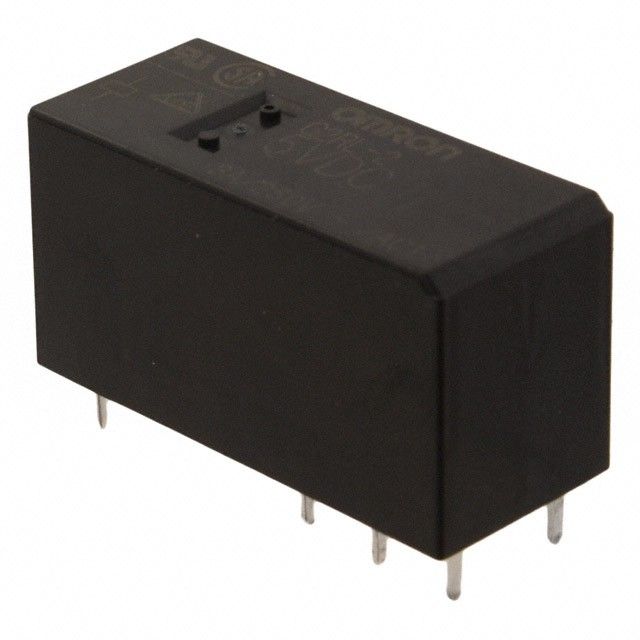

G2RL-14-E-CF DC5
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electromechanical Relay Style | General Purpose | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | 80mA | |
| Inductor Operating Volts | 5VDC | |
| Switch Contact Layout | SPDT (1 Form C) | |
| Pin Ampere Capacity | 16A | |
| Switch Rated Volts | 440VAC, 300VDC - Max | |
| Max Turn-On V | 3.5 VDC | |
| Min Turn-Off V | 0.5 VDC | |
| Activation Response Time | 15ms | |
| Reset Response Duration | 5ms | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin |
Description
Measures resistance at forward current 0.5 VDC for LED or diode evaluation. Accommodates coil current recorded at 80mA. Built with a coil type designated as Non Latching for effective electrical performance. Functions with a coil voltage of 5VDC for dependable operation. Employs contact form classified as SPDT (1 Form C). Accommodates contact current rating of 16A. Mounting style Through Hole for structural integrity. Response duration 15ms for timing and activation. Type of relay General Purpose for switching electrical circuits. Time taken 5ms for release and responsiveness. Switch voltage rating 440VAC, 300VDC - Max for electrical specifications. Termination type PC Pin for connector or device. Lowest turn-off voltage 0.5 VDC for electronic parts. Highest turn-on voltage 3.5 VDC for component specifications. Peak Vce(on) at Vge General Purpose for transistor parameters.
