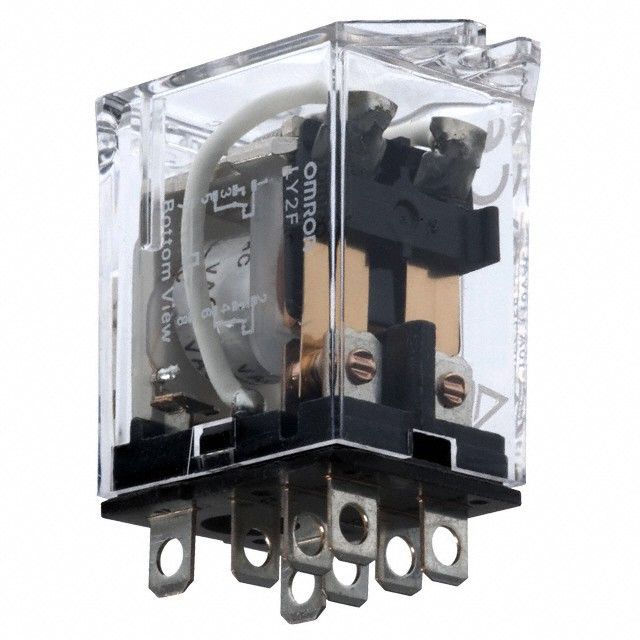

LY2F-AC24
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electromechanical Relay Style | General Purpose | |
| Electromagnetic Coil Design | Non Latching | |
| Electromagnet Amp Draw | 46mA | |
| Inductor Operating Volts | 24VAC | |
| Switch Contact Layout | DPDT (2 Form C) | |
| Pin Ampere Capacity | 10A | |
| Switch Rated Volts | 250VAC, 125VDC - Max | |
| Max Turn-On V | 19.2 VAC | |
| Min Turn-Off V | 7.2 VAC | |
| Activation Response Time | 25ms | |
| Reset Response Duration | 25ms | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Plug In |
Description
Measures resistance at forward current 7.2 VAC for LED or diode evaluation. Accommodates coil current recorded at 46mA. Built with a coil type designated as Non Latching for effective electrical performance. Functions with a coil voltage of 24VAC for dependable operation. Employs contact form classified as DPDT (2 Form C). Accommodates contact current rating of 10A. Mounting style Chassis Mount for structural integrity. Response duration 25ms for timing and activation. Type of relay General Purpose for switching electrical circuits. Time taken 25ms for release and responsiveness. Switch voltage rating 250VAC, 125VDC - Max for electrical specifications. Termination type Plug In for connector or device. Lowest turn-off voltage 7.2 VAC for electronic parts. Highest turn-on voltage 19.2 VAC for component specifications. Peak Vce(on) at Vge General Purpose for transistor parameters.
