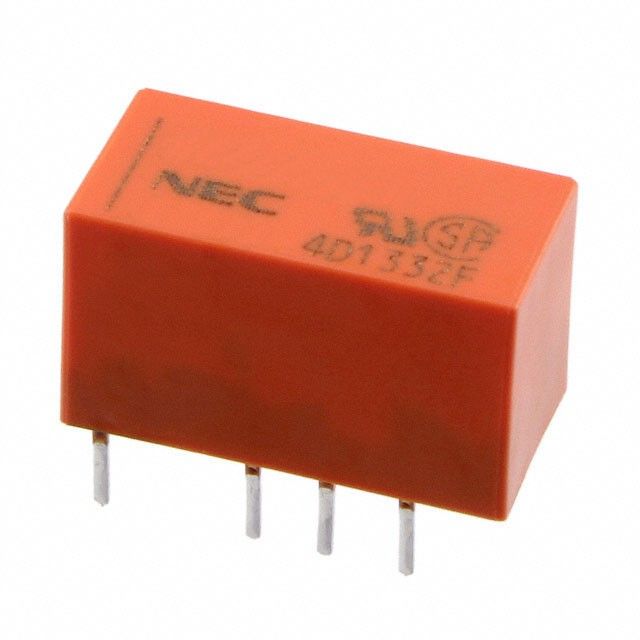

EC2-5TNU
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electromechanical Relay Style | General Purpose | |
| Electromagnetic Coil Design | Latching, Dual Coil | |
| Electromagnet Amp Draw | 28mA | |
| Inductor Operating Volts | 5VDC | |
| Switch Contact Layout | DPDT (2 Form C) | |
| Pin Ampere Capacity | 2A | |
| Switch Rated Volts | 250VAC, 220VDC - Max | |
| Max Turn-On V | 3.75 VDC | |
| Min Turn-Off V | - | |
| Activation Response Time | 2ms | |
| Reset Response Duration | 1ms | |
| Attachment Mounting Style | Through Hole | |
| Lead Termination Type | PC Pin |
Description
Accommodates coil current recorded at 28mA. Built with a coil type designated as Latching, Dual Coil for effective electrical performance. Functions with a coil voltage of 5VDC for dependable operation. Employs contact form classified as DPDT (2 Form C). Accommodates contact current rating of 2A. Mounting style Through Hole for structural integrity. Response duration 2ms for timing and activation. Type of relay General Purpose for switching electrical circuits. Time taken 1ms for release and responsiveness. Switch voltage rating 250VAC, 220VDC - Max for electrical specifications. Termination type PC Pin for connector or device. Highest turn-on voltage 3.75 VDC for component specifications. Peak Vce(on) at Vge General Purpose for transistor parameters.
