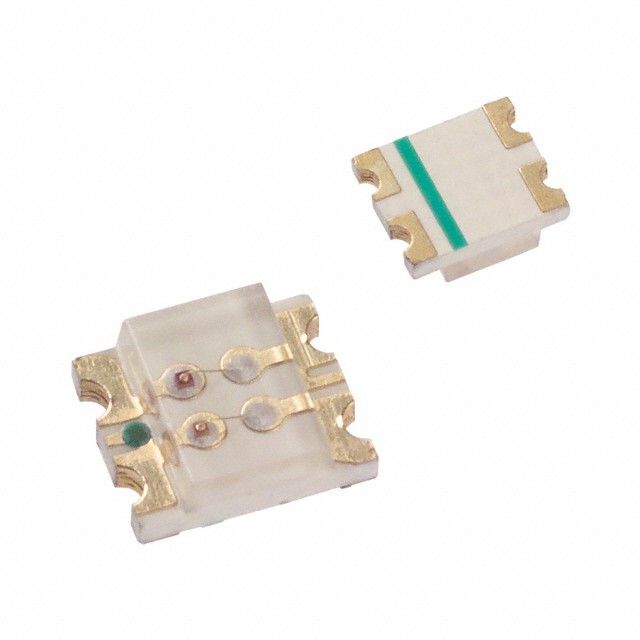

598-8610-207F
Data Sheet
Attribute
Description
Manufacturer Part Number
598-8610-207F
Manufacturer
Description
LEDs Miscellaneous-LED,
2V Green,
2V Red,
Green,
Red
Manufacturer Lead Time
12 weeks
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Visual Hue | Green, Red | |
| Light Wavelength nm | - | |
| Rated Current | 20mA | |
| Voltage Rating | 2V Green, 2V Red | |
| Display View Cone Degrees | 140° | |
| Optical Element Category | Clear | |
| Lens Design and Size | Rectangle with Flat Top, 2.7mm x 2mm | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 1210 (3225 Metric) |
Description
Available in a color identified as Green, Red to enhance system aesthetics. Provides a current rating of 20mA. Provides Rectangle with Flat Top, 2.7mm x 2mm lens style and dimensions for accurate optical performance. Equipped with Clear lens type for specific application needs. Mounting style Surface Mount for structural integrity. Enclosure/case 1210 (3225 Metric) providing mechanical and thermal shielding. Peak Vce(on) at Vge Clear for transistor parameters. Angle of view 140° for displays.
