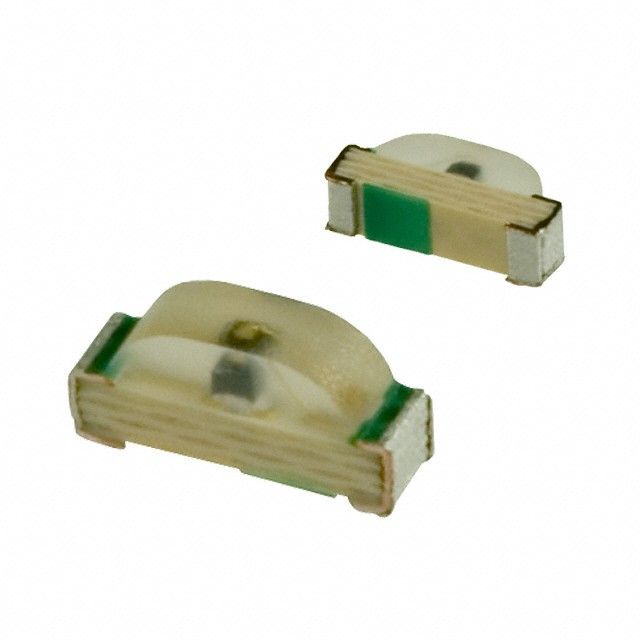

PG1113F-TR
Data Sheet
Attribute
Description
Manufacturer Part Number
PG1113F-TR
Manufacturer
Description
LEDs Miscellaneous-LED,
2.1V,
560nm,
Green
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Visual Hue | Green | |
| Light Wavelength nm | 560nm | |
| Rated Current | 20mA | |
| Voltage Rating | 2.1V | |
| Display View Cone Degrees | 145°, 147° | |
| Optical Element Category | Diffused, White | |
| Lens Design and Size | Rectangle with Domed Top, 1.7mm x 0.6mm | |
| Attachment Mounting Style | Surface Mount, Right Angle | |
| Component Housing Style | 0805 (2012 Metric) |
Description
Available in a color identified as Green to enhance system aesthetics. Provides a current rating of 20mA. Provides Rectangle with Domed Top, 1.7mm x 0.6mm lens style and dimensions for accurate optical performance. Equipped with Diffused, White lens type for specific application needs. Mounting style Surface Mount, Right Angle for structural integrity. Enclosure/case 0805 (2012 Metric) providing mechanical and thermal shielding. Peak Vce(on) at Vge Diffused, White for transistor parameters. Angle of view 145°, 147° for displays. Light wavelength 560nm for RF or optical instruments.
