Data Sheet
Attribute
Description

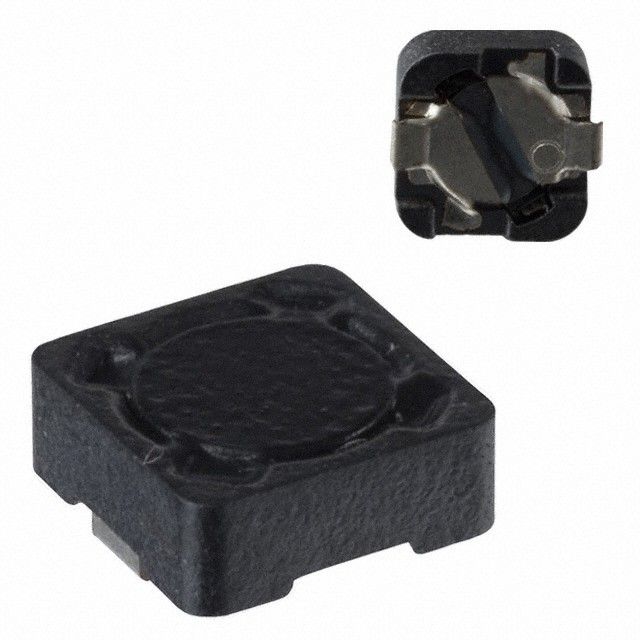

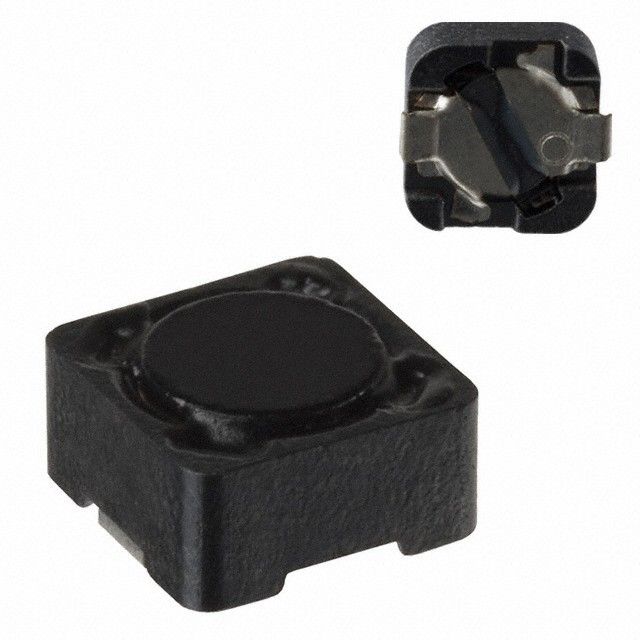

Manufacturer Part Number
SH150S-1.02-17
Manufacturer
Description
Inductor,
17µH,
1.02A,
Toroidal,
Surface Mount
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Material - Core | - | |
| Inductance | 17µH | |
| Tolerance | ±20% | |
| Current Rating | 1.02A | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 100 mOhm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 10kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Non Standard | |
| Size / Dimension | 0.441" L x 0.433" W (11.20mm x 11.00mm) | |
| Height - Seated (Max) | 0.301" (7.65mm) |
