Data Sheet
Attribute
Description
Manufacturer Part Number
5501-24-1
Manufacturer
Description

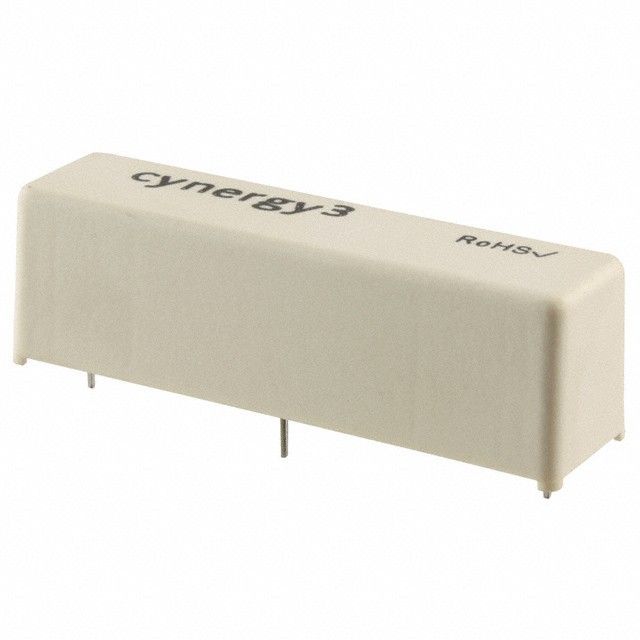

RELAY REED SPST 3A 24V
Manufacturer Lead Time
Not specified
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 2,936.11 | ₹ 2,936.11 |
Stock:
Distributor: 2
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 3,099.87 | ₹ 3,099.87 |
Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 3,449.64 | ₹ 3,449.64 |
Stock:
Distributor: 3
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 4,728.57 | ₹ 4,728.57 |
| 10 | ₹ 4,087.77 | ₹ 40,877.70 |
| 50 | ₹ 3,446.97 | ₹ 1,72,348.50 |
| 100 | ₹ 2,996.63 | ₹ 2,99,663.00 |
| 250 | ₹ 2,632.62 | ₹ 6,58,155.00 |
| 500 | ₹ 2,355.83 | ₹ 11,77,915.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Relay Type | Reed | |
| Coil Type | Non Latching | |
| Coil Current | 41.7mA | |
| Coil Voltage | 24VDC | |
| Contact Form | SPST-NO (1 Form A) | |
| Contact Rating (Current) | 3A | |
| Switching Voltage | 7500VAC, 7500VDC - Max | |
| Turn On Voltage (Max) | 18 VDC | |
| Turn Off Voltage (Min) | 2 VDC | |
| Operate Time | 3ms | |
| Release Time | 3ms | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin |
