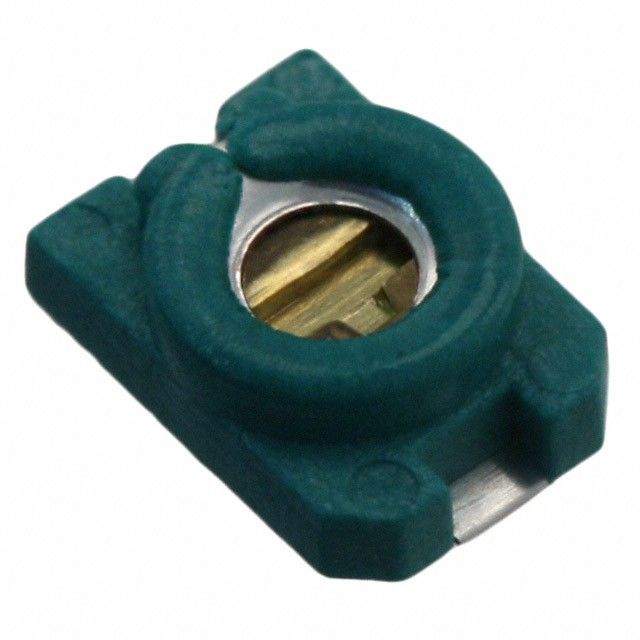

SGC3S300
Data Sheet
Attribute
Description
Manufacturer Part Number
SGC3S300
Manufacturer
Description
Variable-Trimmer Capacitors,
8 ~ 30pF,
500V,
Surface Mount
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Cap Range | 8 ~ 30pF | |
| Tuning Mechanism Style | Top Adjustment | |
| Rated Operating Voltage | 500V | |
| Package Size Specs | Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm | |
| Maximum Mounted Height | 0.059" (1.50mm) | |
| Attachment Mounting Style | Surface Mount |
Description
Offers an adjustment mechanism characterized as Top Adjustment for precise tuning. Operates within a capacitance range of 8 ~ 30pF. Maximum seated height of 0.059" (1.50mm) for components mounted on the board. Mounting style Surface Mount for structural integrity. Dimensions Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm for mechanical or electrical components. Dimension measurement Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm for component details. Operating voltage rating 500V for device specifications.
