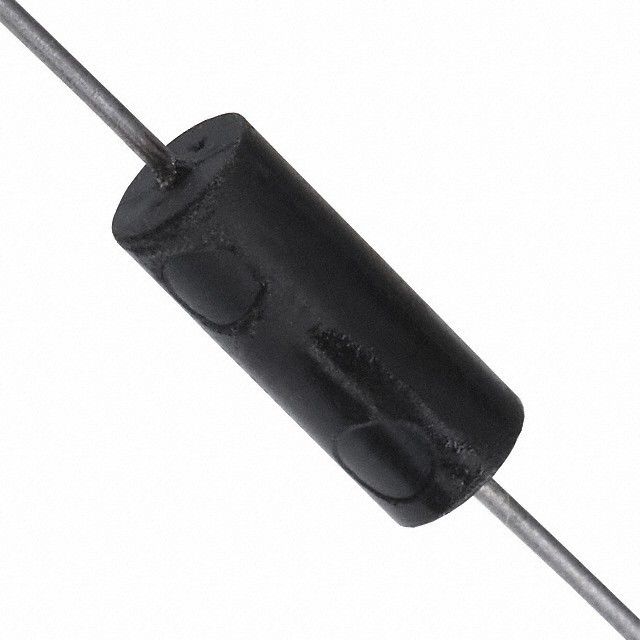

2474R-51L
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Inductor Core Type | Ferrite | |
| Coil Inductance Value | 15mH | |
| Accuracy Tolerance Percentage | ±15% | |
| Rated Current | 100mA | |
| Saturation Current | 50mA | |
| Electromagnetic Interference Protection | Unshielded | |
| Direct Current Resistance | 36 Ohm Max | |
| Quality Factor at Frequency | - | |
| Self-Resonance Frequency | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Test Frequency | 1kHz | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Axial | |
| Package Size Specs | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | |
| Maximum Mounted Height | - |
Description
Measures resistance at forward current Unshielded for LED or diode evaluation. Accommodates saturation current specified at 50mA. Provides a current rating of 100mA. Offers DC resistance recorded at 36 Ohm Max for precise circuit functionality. Accommodates 1kHz frequency during testing to ensure precise device validation. Offers 15mH inductance for tuning and filtering circuits. Material Ferrite for efficient electromagnetic performance. Mounting style Through Hole for structural integrity. Operating temperature -55°C ~ 125°C for thermal stability. Enclosure/case Axial providing mechanical and thermal shielding. Shielding Unshielded for EMI/RFI shielding. Dimensions 0.240" Dia x 0.740" L (6.10mm x 18.80mm) for mechanical or electrical components. Dimension measurement 0.240" Dia x 0.740" L (6.10mm x 18.80mm) for component details. Tolerance ±15% for precision in manufacturing. Peak Vce(on) at Vge Unshielded for transistor parameters.
