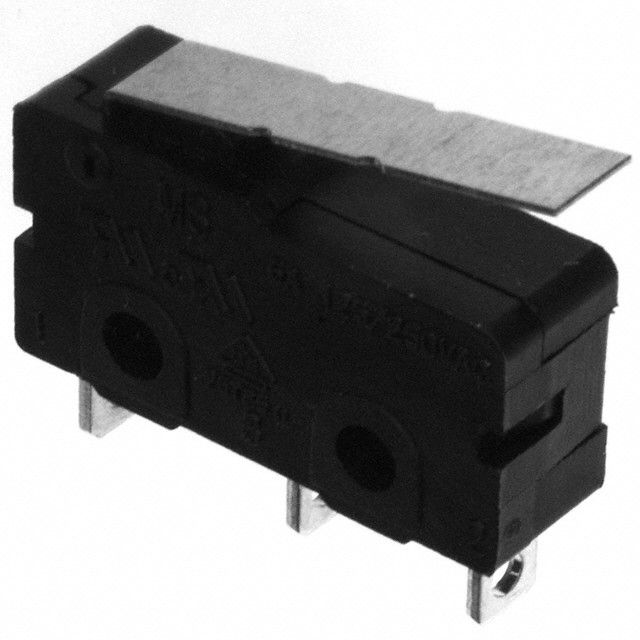

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-Mom | |
| Rated Current | 6A (AC) | |
| AC Voltage Max | 125V | |
| DC Voltage Max | - | |
| Activator Mechanism Type | Lever, Straight | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Solder Lug | |
| Dust Water Resistance Rating | * | |
| Operating Force, Torque | 50gf | |
| Detachment Pressure | 10gf | |
| Initial Travel Distance | 0.180 (4.6mm) | |
| Switch Travel Difference | 0.032 (0.81mm) | |
| Excess Travel Distance | 0.035 (0.9mm) |
Description
Fitted with a Lever, Straight actuator type to execute the intended function. Measures resistance at forward current 50gf for LED or diode evaluation. Set up to circuit type characterized as SPDT. Provides a current rating of 6A (AC). Provides differential travel rated at 0.032 (0.81mm). Rated with IP * for protection against dust and moisture ingress. Mounting style Chassis Mount for structural integrity. Excess travel 0.035 (0.9mm) for mechanical safety and longevity. Initial movement 0.180 (4.6mm) for switch or mechanical control. Force required 10gf for mechanical or switch operation. Operation mode switch On-Mom for electrical function. Termination type Solder Lug for connector or device. Peak Vce(on) at Vge SPDT for transistor parameters. Maximum AC voltage rating 125V for device specifications.
