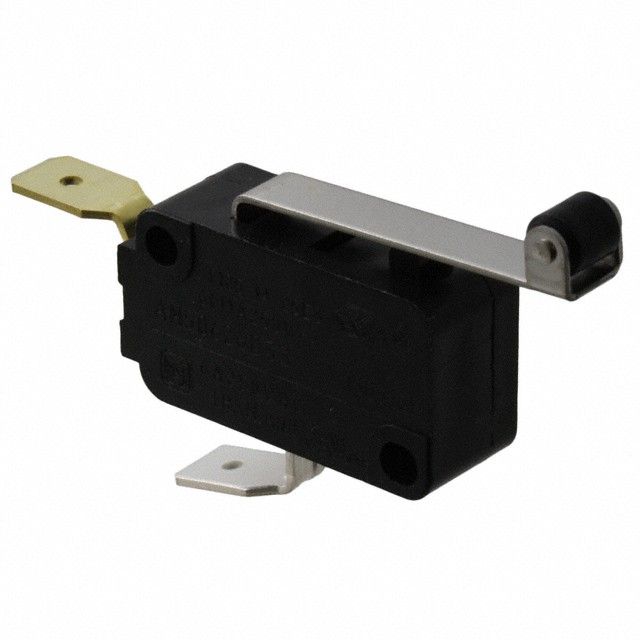

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-Mom | |
| Rated Current | 2A (AC/DC) | |
| AC Voltage Max | 125V | |
| DC Voltage Max | 30V | |
| Activator Mechanism Type | Lever, Straight | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Quick Connect - 0.110 (2.8mm) | |
| Dust Water Resistance Rating | IP50 - Dust Protected | |
| Operating Force, Torque | 45gf | |
| Detachment Pressure | 3gf | |
| Initial Travel Distance | 0.138 (3.5mm) | |
| Switch Travel Difference | 0.040 (1.0mm) | |
| Excess Travel Distance | 0.062 (1.6mm) |
Description
Fitted with a Lever, Straight actuator type to execute the intended function. Measures resistance at forward current 45gf for LED or diode evaluation. Set up to circuit type characterized as SPDT. Provides a current rating of 2A (AC/DC). Provides differential travel rated at 0.040 (1.0mm). Rated with IP IP50 - Dust Protected for protection against dust and moisture ingress. Mounting style Chassis Mount for structural integrity. Excess travel 0.062 (1.6mm) for mechanical safety and longevity. Initial movement 0.138 (3.5mm) for switch or mechanical control. Force required 3gf for mechanical or switch operation. Operation mode switch On-Mom for electrical function. Termination type Quick Connect - 0.110 (2.8mm) for connector or device. Peak Vce(on) at Vge SPDT for transistor parameters. Maximum AC voltage rating 125V for device specifications. Maximum DC voltage rating 30V for components.
