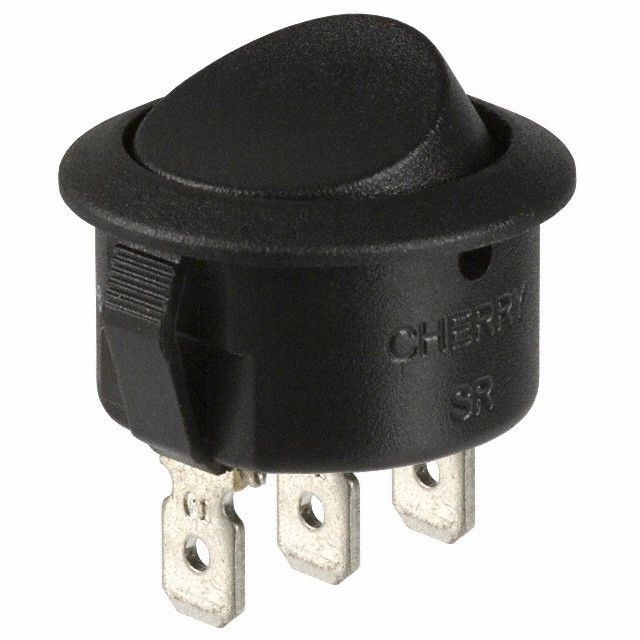

KDH3BNA1BBB
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electrical Pathway | DPDT | |
| Switch Operation Mode | On-On | |
| Rated Current | 16A (AC), 10A (DC) | |
| AC Voltage Max | 125V | |
| DC Voltage Max | 28V | |
| Actuator Design | Round | |
| Activator Cap Shade | Black | |
| Activator Label Indicator | No Marking | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Attachment Mounting Style | Panel Mount, Snap-In | |
| Lead Termination Type | Quick Connect - 0.187" (4.7mm) | |
| Dust Water Resistance Rating | IP56 - Dust Protected, Water Resistant | |
| Mount Cutout Specs | Circular - 20.00mm Dia |
Description
Includes labels marked as No Marking for straightforward identification. Utilizes a Round actuator type tailored for application requirements. Set up to circuit type characterized as DPDT. Crafted with actuator or cap color indicated as Black for visual distinction. Provides a current rating of 16A (AC), 10A (DC). Rated with IP IP56 - Dust Protected, Water Resistant for protection against dust and moisture ingress. Mounting style Panel Mount, Snap-In for structural integrity. Cutout dimensions Circular - 20.00mm Dia for precise mounting. Operation mode switch On-On for electrical function. Termination type Quick Connect - 0.187" (4.7mm) for connector or device. Peak Vce(on) at Vge DPDT for transistor parameters. Maximum AC voltage rating 125V for device specifications. Maximum DC voltage rating 28V for components.
