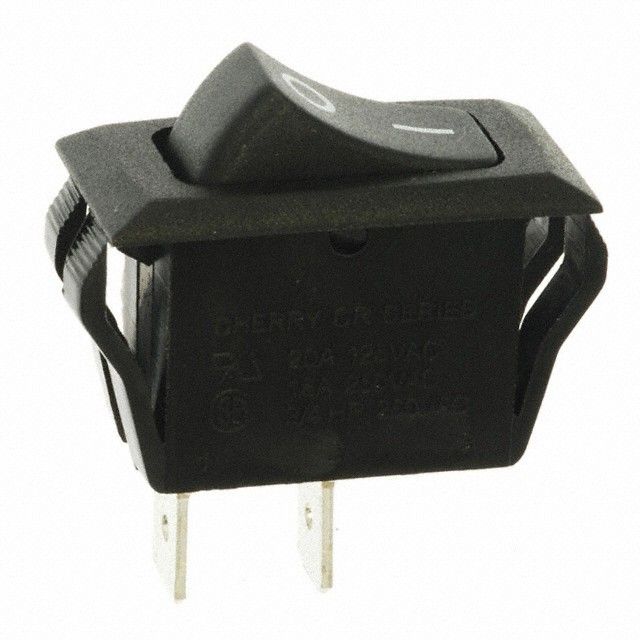

KGC2ANB1BBD
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electrical Pathway | SPST | |
| Switch Operation Mode | On-Off | |
| Rated Current | 20A (AC), 21A (DC) | |
| AC Voltage Max | 125V | |
| DC Voltage Max | 14V | |
| Actuator Design | Concave (Curved) | |
| Activator Cap Shade | Black | |
| Activator Label Indicator | O - | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Attachment Mounting Style | Panel Mount, Snap-In | |
| Lead Termination Type | Quick Connect - 0.250" (6.3mm) | |
| Dust Water Resistance Rating | IP56 - Dust Protected, Water Resistant | |
| Mount Cutout Specs | Rectangular - 36.60mm x 21.20mm |
Description
Includes labels marked as O - for straightforward identification. Utilizes a Concave (Curved) actuator type tailored for application requirements. Set up to circuit type characterized as SPST. Crafted with actuator or cap color indicated as Black for visual distinction. Provides a current rating of 20A (AC), 21A (DC). Rated with IP IP56 - Dust Protected, Water Resistant for protection against dust and moisture ingress. Mounting style Panel Mount, Snap-In for structural integrity. Cutout dimensions Rectangular - 36.60mm x 21.20mm for precise mounting. Operation mode switch On-Off for electrical function. Termination type Quick Connect - 0.250" (6.3mm) for connector or device. Peak Vce(on) at Vge SPST for transistor parameters. Maximum AC voltage rating 125V for device specifications. Maximum DC voltage rating 14V for components.
