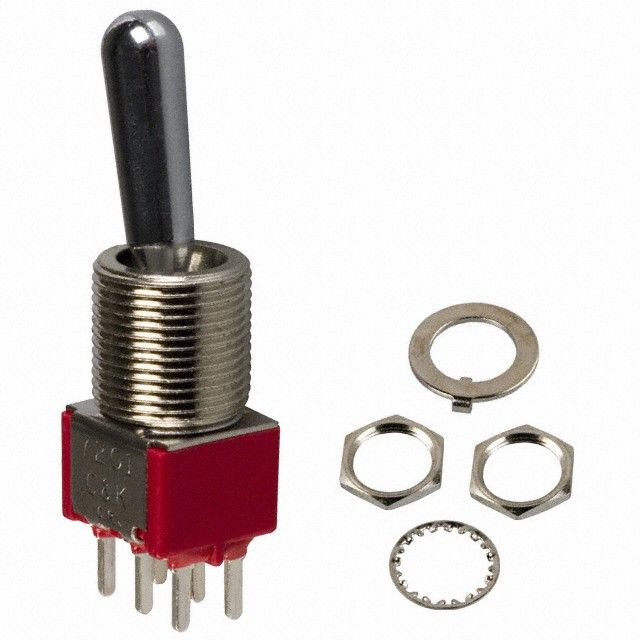

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electrical Pathway | 3PDT | |
| Switch Operation Mode | On-On | |
| Rated Current | 5A (AC/DC) | |
| AC Voltage Max | 120V | |
| DC Voltage Max | 28V | |
| Activator Mechanism Type | Standard Round | |
| Activator Arm Length | 17.45mm | |
| Backlighting Feature | Non-Illuminated | |
| LED Illumination Shades | - | |
| Standard Illumination Volts | - | |
| Attachment Mounting Style | Panel Mount | |
| Mount Cutout Specs | Circular - 11.91mm Dia | |
| Lead Termination Type | Solder Lug | |
| Insulator Thread Pattern | 15/32-32 | |
| Dust Water Resistance Rating | - |
Description
Constructed with an actuator length of 17.45mm for adequate interaction reach. Fitted with a Standard Round actuator type to execute the intended function. Crafted with a bushing thread size of 15/32-32 to ensure secure attachment. Measures resistance at forward current Non-Illuminated for LED or diode evaluation. Set up to circuit type characterized as 3PDT. Provides a current rating of 5A (AC/DC). Offers Non-Illuminated brightness for improved visibility. Mounting style Panel Mount for structural integrity. Cutout dimensions Circular - 11.91mm Dia for precise mounting. Operation mode switch On-On for electrical function. Termination type Solder Lug for connector or device. Peak Vce(on) at Vge 3PDT for transistor parameters. Maximum AC voltage rating 120V for device specifications. Maximum DC voltage rating 28V for components.
