Attribute
Description
Manufacturer Part Number
ASKHC2A04AC
Manufacturer
Description

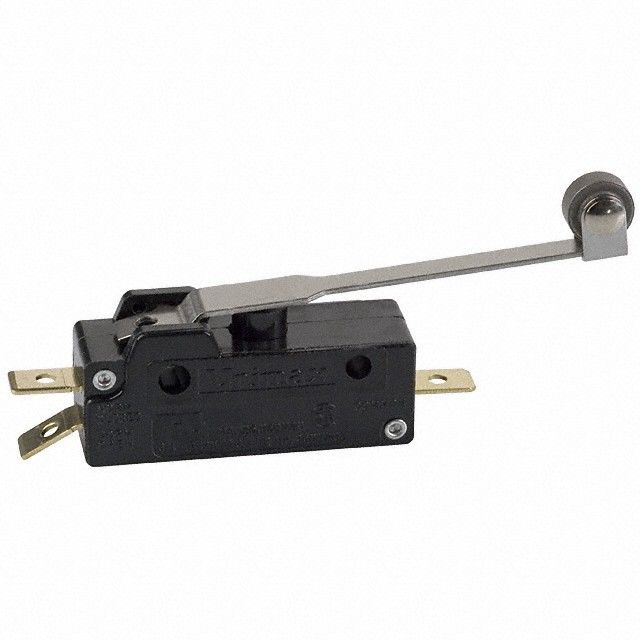

SW SNAP SPDT 15A ROLLER QC 125V
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electrical Pathway | SPDT | |
| Switch Operation Mode | On-Mom | |
| Rated Current | 15A (AC) | |
| AC Voltage Max | 125V | |
| DC Voltage Max | - | |
| Activator Mechanism Type | Lever, Roller | |
| Attachment Mounting Style | Chassis Mount | |
| Lead Termination Type | Quick Connect - 0.250" (6.3mm) | |
| Dust Water Resistance Rating | - | |
| Operating Force, Torque | 113gf | |
| Detachment Pressure | 14gf | |
| Initial Travel Distance | 0.312" (7.9mm) | |
| Switch Travel Difference | - | |
| Excess Travel Distance | 0.312" (7.9mm) |
Description
Fitted with a Lever, Roller actuator type to execute the intended function. Measures resistance at forward current 113gf for LED or diode evaluation. Set up to circuit type characterized as SPDT. Provides a current rating of 15A (AC). Mounting style Chassis Mount for structural integrity. Excess travel 0.312" (7.9mm) for mechanical safety and longevity. Initial movement 0.312" (7.9mm) for switch or mechanical control. Force required 14gf for mechanical or switch operation. Operation mode switch On-Mom for electrical function. Termination type Quick Connect - 0.250" (6.3mm) for connector or device. Peak Vce(on) at Vge SPDT for transistor parameters. Maximum AC voltage rating 125V for device specifications.
