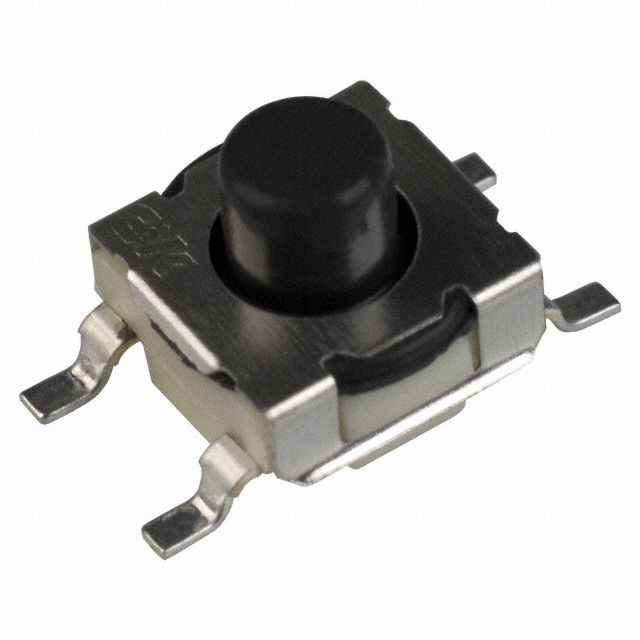

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Electrical Pathway | SPST-NO | |
| Switch Operation Mode | Off-Mom | |
| Pin Voltage Tolerance | 1VA @ 32VAC/DC | |
| Activator Mechanism Type | Standard | |
| Attachment Mounting Style | Surface Mount | |
| Actuator Height off PCB, from Pins | 3.64mm | |
| Activator Alignment Direction | Top Actuated | |
| Lead Termination Type | Gull Wing | |
| Dimensional Outline Drawing | 6.38mm x 6.22mm | |
| Backlighting Feature | Non-Illuminated | |
| Standard Illumination Volts | - | |
| LED Illumination Shades | - | |
| Torque | 300gf | |
| Dust Water Resistance Rating | IP57 - Dust Protected, Waterproof |
Description
Keeps a distance of 3.64mm from the PCB surface. Set with Top Actuated actuator orientation for accurate positioning. Fitted with a Standard actuator type to execute the intended function. Measures resistance at forward current 3.64mm for LED or diode evaluation. Set up to circuit type characterized as SPST-NO. Delivers contact rating at voltage specified as 1VA @ 32VAC/DC. Offers Non-Illuminated brightness for improved visibility. Rated with IP IP57 - Dust Protected, Waterproof for protection against dust and moisture ingress. Mounting style Surface Mount for structural integrity. Contour 6.38mm x 6.22mm for device shape and footprint. Operation mode switch Off-Mom for electrical function. Termination type Gull Wing for connector or device. Peak Vce(on) at Vge SPST-NO for transistor parameters.
