Attribute
Description
Manufacturer Part Number

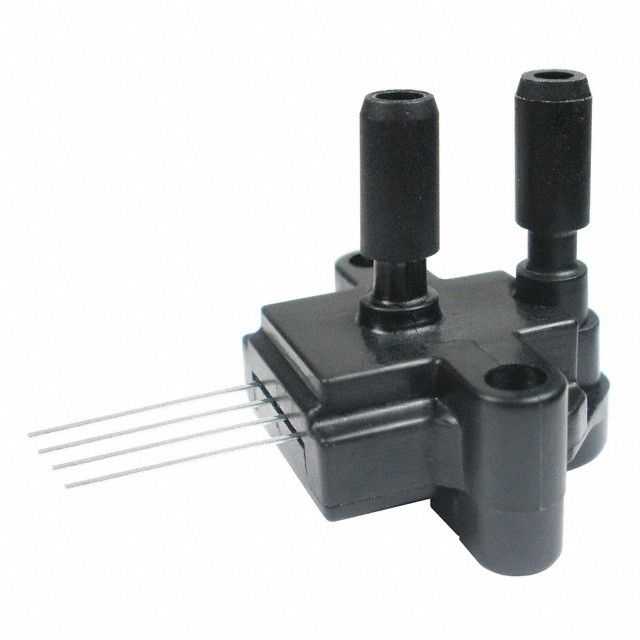

MPX2202DP
Manufacturer
Description
SENSOR DIFF PRESS 29PSI MAX
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Pressure Sensing Mode | Differential | |
| Working Pressure Limit | 29 PSI | |
| Network Port Dimension | Male, 0.194 (4.9276mm) Tube, Dual | |
| Signal Output Format | 0 mV ~ 40 mV | |
| Precision Level | -0.6% ~ 0.4%FSS | |
| Single/Dual (±) | 10V | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Lead Termination Type | PCB | |
| Component Housing Style | 4-SIP Module |
Description
Delivers measurement accuracy rated at -0.6% ~ 0.4%FSS for trustworthy outcomes. Measures resistance at forward current 0 mV ~ 40 mV for LED or diode evaluation. Pressure limit 29 PSI for hydraulic or pneumatic systems. Operating temperature -40°C ~ 125°C for thermal stability. Output format 0 mV ~ 40 mV for electrical or signal transmission. Enclosure/case 4-SIP Module providing mechanical and thermal shielding. Dimension Male, 0.194 (4.9276mm) Tube, Dual of the port for mechanical or fluid suitability. Type of pressure Differential for measurement or operational needs. Termination type PCB for connector or device.
