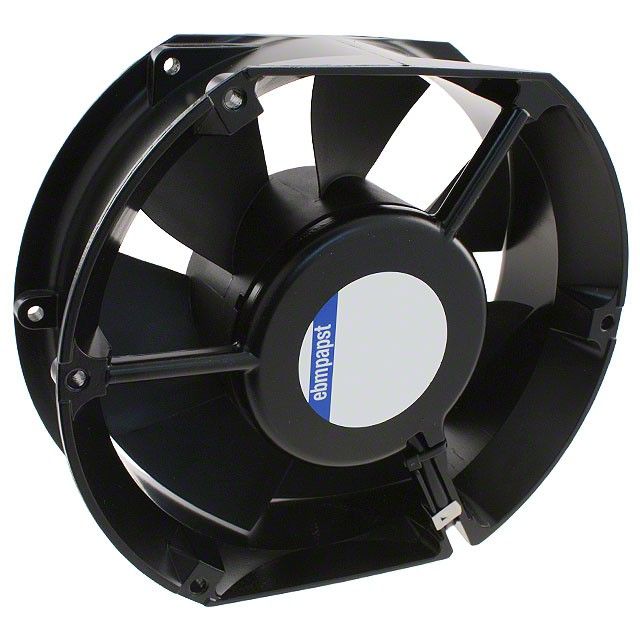

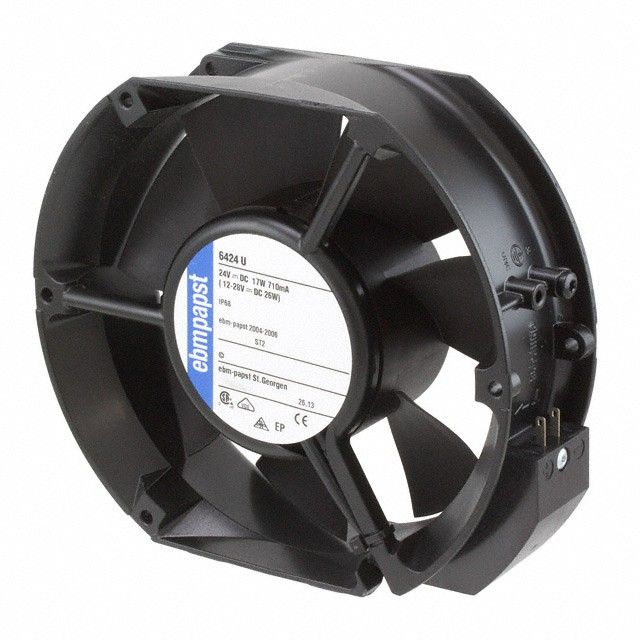

6424U
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Variant | Tubeaxial | |
| DC Fan Bearing Mode | Ball | |
| Max Voltage Specification | 24VDC | |
| Ventilation Rate | 241.3 CFM (6.83m³/min) | |
| Airflow Static Pressure | - | |
| Electrical Noise Level | 57 dB(A) | |
| Power Rating | 18.0W | |
| Revolutions Per Minute | 3400 RPM | |
| Ambient Temp Range | -4 ~ 167°F (-20 ~ 75°C) | |
| Circuit End Method | 2 Terminals | |
| Package Size Specs | Rectangular/Rounded - 171.5mm L x 150.4mm H x 50.8 |
Description
Provides airflow rated at 241.3 CFM (6.83m³/min) for effective cooling. Measures resistance at forward current Tubeaxial for LED or diode evaluation. Designed with a DC fan bearing type indicated as Ball for optimal airflow. Includes a DC fan type rated at Tubeaxial for optimal cooling efficiency. Sound level 57 dB(A) for acoustic or electronic efficiency. Operating temperature -4 ~ 167°F (-20 ~ 75°C) for thermal stability. Energy 18.0W for device power needs. RPM 3400 RPM for motors or mechanical systems. Dimensions Rectangular/Rounded - 171.5mm L x 150.4mm H x 50.8 for mechanical or electrical components. Dimension measurement Rectangular/Rounded - 171.5mm L x 150.4mm H x 50.8 for component details. Termination method 2 Terminals for electrical or mechanical linkage. Peak Vce(on) at Vge 24VDC for transistor parameters. Voltage specification 24VDC for components.
