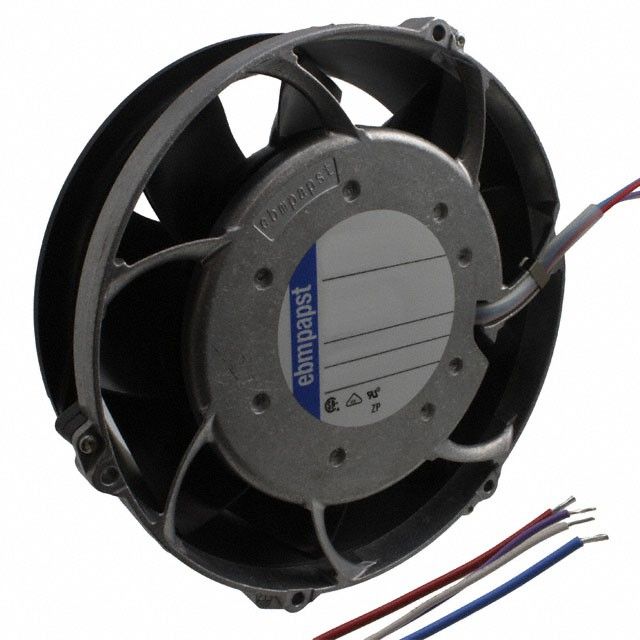

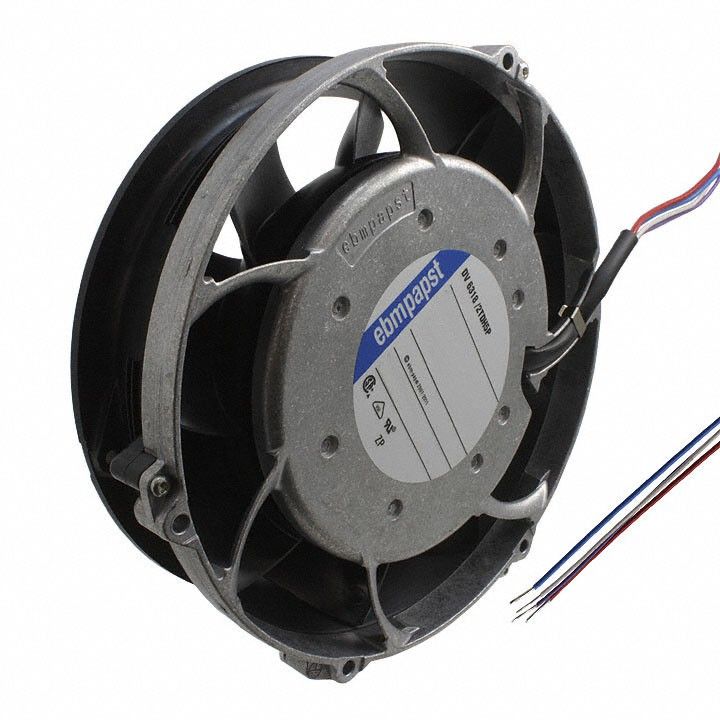

DV6318/2TDH4P
Data Sheet
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Variant | Tubeaxial | |
| DC Fan Bearing Mode | Ball | |
| Max Voltage Specification | 48VDC | |
| Ventilation Rate | 617.0 CFM (17.47m³/min) | |
| Airflow Static Pressure | - | |
| Electrical Noise Level | - | |
| Power Rating | 300W | |
| Revolutions Per Minute | 6500 RPM | |
| Ambient Temp Range | -4 ~ 149°F (-20 ~ 65°C) | |
| Circuit End Method | 4 Wire Leads | |
| Package Size Specs | Round - 171.5mm Dia x 50.8mm W |
Description
Provides airflow rated at 617.0 CFM (17.47m³/min) for effective cooling. Measures resistance at forward current Tubeaxial for LED or diode evaluation. Designed with a DC fan bearing type indicated as Ball for optimal airflow. Includes a DC fan type rated at Tubeaxial for optimal cooling efficiency. Operating temperature -4 ~ 149°F (-20 ~ 65°C) for thermal stability. Energy 300W for device power needs. RPM 6500 RPM for motors or mechanical systems. Dimensions Round - 171.5mm Dia x 50.8mm W for mechanical or electrical components. Dimension measurement Round - 171.5mm Dia x 50.8mm W for component details. Termination method 4 Wire Leads for electrical or mechanical linkage. Peak Vce(on) at Vge 48VDC for transistor parameters. Voltage specification 48VDC for components.
